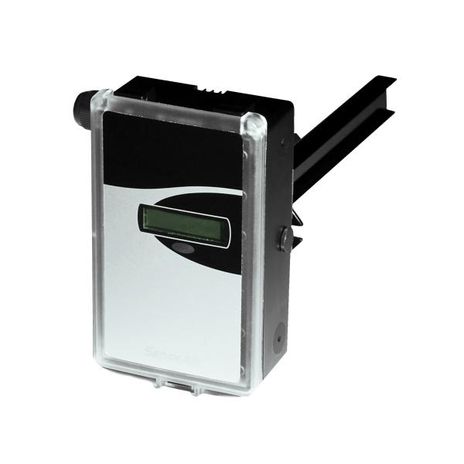

ACI ASENSE-D-LCD-REL

Name: ACI ASENSE-D-LCD-REL
Brand: ACI
SKU: CS6287013
Availability: OutOfStock

SKU: CS6287013MPN: ASENSE-D-LCD-RELAlternate Part #: 130532

Carbon Dioxide Sensor, Duct Mount, 0-2000 PPM, Relay and Temperature, LCD, 0-10VDC \& 4-20mA

Product Details

Carbon Dioxide Sensor, Duct Mount, 0-2000 PPM, Relay and Temperature, LCD, 0-10VDC \& 4-20mA

Product Configuration

Display	With LCD Display

Product Family Specifications

Outputs	Out 1 (CO2): 0/2 to 10V, 0/4 to 20 mA, 0 to 2000 ppm Out 2 (Temperature): 0/2 to 10V, 0/4 to 20 mA, 32 to 122ºF (0 to 50ºC)
Accuracy	CO21: ±30 ppm and ±3% of reading \| Temperature: ±1.8ºF (1ºC)
Calibration	Senseair ABC algorithm (Automatic Baseline Correction)
Sensor Life	>15 years
Warm Up Time	\<5 minutes (@ full specs 15 minutes)
Coverage Area	7500 sq. ft. maximum
Repeatability	±20 ppm ±1% of measured value
Sensing Range	CO2: 0 to 2000 ppm \| Temperature: -4 to 140ºF (-20 to 60ºC)
Product Weight	0.812 lbs (0.368 kg)
Sensing Method	Single beam Non-dispersive Infrared (NDIR)
Supply Voltage	24 VAC/VDC ±20%; 50/60 Hz, 10.5 to 40 VDC maximum (Half-wave rectied)
Agency Approvals	EMC Directive 2014/30/EC, RoHS Directive 2011/65/EU \& RoHS 3 Directive 2015/863/EU
Relay (Optional)	Out 3: N.O. or N.C. rated 0.5A @ 125 VAC; 1A @ 24 VDC
Relay Durability	Mechanical: 5,000,000 operations minimum (at 36,000 operations/hr) Electrical: 100,000 operations minimum (under rated load, at 1,800 operations/hr)
Relay Trip Point	1000 ppm (factory set)
Self-Diagnostics	Complete function check, yellow LED; LCD error indication (display model only)
Annual Zero Drift	\<± 0.3% of measurement range
Power Consumption	\<1W
Display (Optional)	4 digits, 7 segments LCD with ppm indicator
Operating Pressure	+1.6% per 0.145 psi (1 kPa) deviation from normal pressure \| (1 Atmosphere \= 14.7 psi (1.013 KPa))
Operating RH Range	0 to 85% RH Non-condensing
Product Dimensions	(H) 5.95” (151.9 mm) x (W) 3.33” (84.6 mm) x (D) 1.85” (47 mm)
Wiring Connections	0.00232 in² (1.5 mm²) screw terminals
Extended CO2 Ranges	2000 to 10,000 ppm (factory set or programming cable required)
Response Time (T1/e)	\<10 seconds @ 30 cc / minimum ow rate, \<3 minutes diusion time
Operating Environment	Residential, commercial, and industrial spaces
Relay Deadband/Hysteresis	100 ppm (factory set)
Operating Temperature Range	32ºF to 122ºF (0ºC to 50ºC)
Storage Temperature \| RH Range	ASENSE-D: -40 to 158ºF (-40 to 70ºC) \| ASENSE-D-LCD: -4 to 122ºF (-20 to 50ºC) 0 to 85% RH Non-condensing
Extended Range Accuracy>2,000 PPM	+/- 30 ppm and +/- 5% of reading
Enclosure Material \| Flammability Rating	Duct Box: PC \& ABS blend, Flammability Rating UL94V-0 Cover: Makrolon® 6555 plastic, Flammability Rating UL94V-0 Pipe: PC \& ABS blend, Flammability Rating UL94V-0
