SKU: CS6285286MPN: CO-RAlternate Part #: 102151

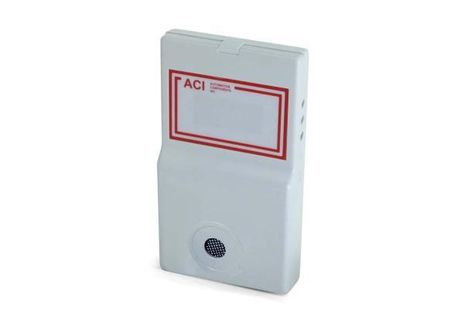

Carbon Monoxide Sensor, 0-125 PPM Default, (250 PPM Max), Room Mount, 4-20mA, 2-10VDC Output

Contact us for pricing and availability

Product Details

Carbon Monoxide Sensor, 0-125 PPM Default, (250 PPM Max), Room Mount, 4-20mA, 2-10VDC Output

Product Configuration

Configuration Modification None

Product Family Specifications

Buzzer Model Dependent: Rating 85 dB @ one foot
Accuracy +/- 2.5% of Reading
# of Relays Model Dependent: Two SPDT Form C, Dry Contact, 1A @ 30 VDC/0.5A @ 125 VAC (Resistive Load)
Sensor Life \~ 5 years under Normal Conditions
Time Delays Actuation / De-Actuation: 0 to 60 Minutes in 5 minute Increments
Coverage Area 7500 sq. ft; 49’ Radius | 4’ to 6’ above the floor
Repeatability +/- 1% of Reading
Response Time Less than 60 Seconds for 90% of step change
Analog Outputs 4-20 mA or 2-10V Jumper Selectable
Product Weight Room: 0.62 lbs (281.2 g)
Supply Current 100 mA nominal | 250 mA maximum
Supply Voltage 24 VAC +/- 10% Floating; 24 VAC +/- 10%, One side Grounded; 24 VDC
Unit Shelf Life 6 Months
Factory Set Range 0 – 125 ppm / 0 – 250 ppm Field Adjustable
Power Consumption 6.6 Watts maximum
Operating Pressure Atmospheric +/- 10% When installed @ > 3000’ above sea level, the gas transmitters must be verified for accuracy \& re-calibrated as needed after installation

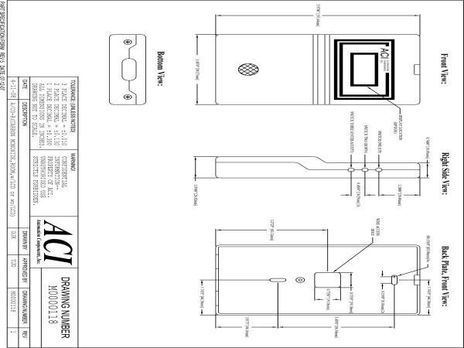

Product Dimensions Room: (H) 6.00” (152.4 mm) x (W) 3.5” (88.9 mm) x (D) 1.09” (27.87 mm)
Operating Environment Indoor Environment only
Relay Life Expectancy 200,000 cycles minimum with 1A @ 30 VDC
Status LED Indication Model dependent: Alphanumeric, 2 line X 8 digit LCD / (2) Red LED’s for Relay Status
Connections | Wire Size Terminal Blocks | 16 to 26 AWG (0.2 to 1.00 nm²) Shielded Twisted Pair
Operating Humidity Range 15 to 90% RH Continuous, non-condensing; 0 to 99% RH Intermittent, non-condensing
Storage Temperature Range 32º to 68ºF (0ºC to 20ºC)
Operating Temperature Range -4ºF to 104ºF (-20ºC to 40ºC)
Terminal Block Torque Rating 0.37 ft-lbs (0.5n-3m) Nominal
Enclosure Material | Flammability Rating Room: Polycarbonate/ABS Blend, UL94V-0

Specifications

SKUCS6285286
MPNCO-R
Alternate Part #102151
