Carrier ZR32K5E-PFJ-830
SKU: CS6231421MPN: ZR32K5E-PFJ-830
COMPRESSOR
Contact us for pricing and availability
Product Details
Attributes
| Amps | 8.1 |
| Phase | Single |
| Voltage | 220-240 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 32,000 |
| Protection | Internal Inherent Protection |
| Cycle/Hertz | 60 Hz |
| Refrigerant | R-134a; R-22; R-407C |
| Displacement | 2.69 in^3/Rev |
| Compressor Type | Scroll |
| Sound Level (dBA) | 68 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 85°F (29.44°C); 115°F (46.11°C) |
| Mass Flow (lbs/hr) | 478 lbs./hr.; 544 lbs./hr. |
| Mounting Dimensions | 7.5” x 7.5” x 16.08” |
| Rated Load Amps (RLA) | 12.8 |
| Substantial Commodity | Steel |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Size (OD) | ¾” |
| Evaporating Temperature | 45°F (7.22°C) |
| Locked Rotor Amps (LRA) | 79 |
| Oil Charge Initial (oz.) | 25 |
| Discharge Connection Type | Stub |
| Suction Line Fitting Type | Stub |
| Discharge Connection Size (OD) | ½” |
Specifications
| SKU | CS6231421 |
|---|---|
| MPN | ZR32K5E-PFJ-830 |
You may also like

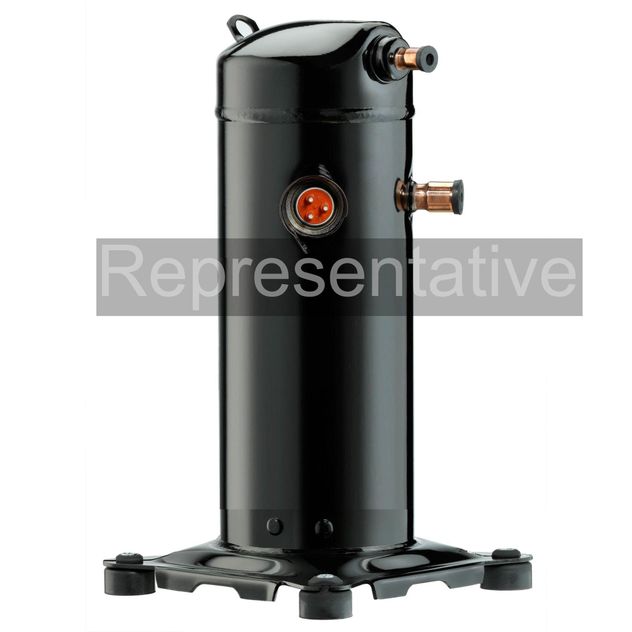

Carrier ZPS30K5E-PFJ-830
Contact us for pricing and availability

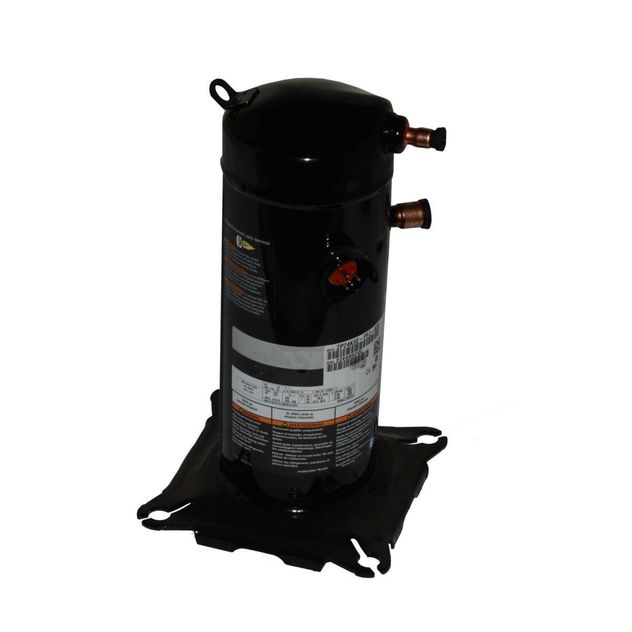

Carrier ZP24K5E-PFJ-830
Contact us for pricing and availability

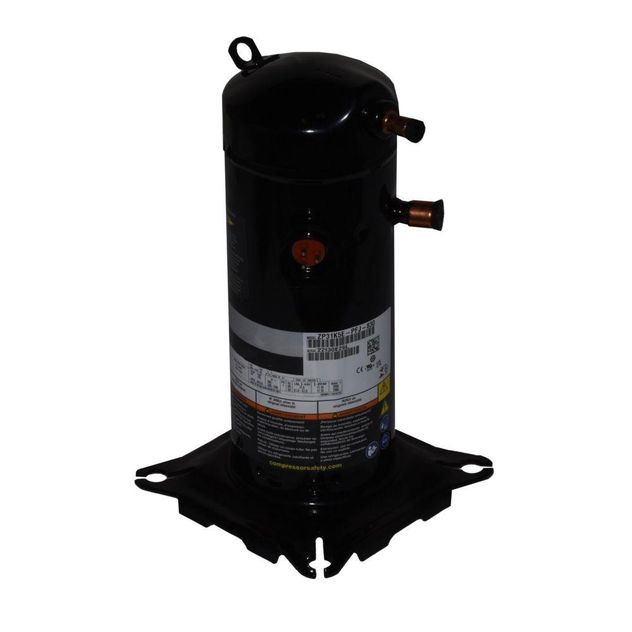

Carrier ZP31K5E-PFJ-830
