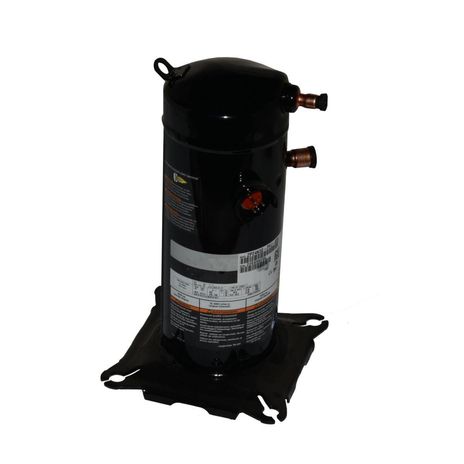

Carrier ZP24K5E-PFJ-830

Name: Carrier ZP24K5E-PFJ-830
Brand: Carrier
SKU: CS5791241
Availability: OutOfStock

SKU: CS5791241MPN: ZP24K5E-PFJ-830

COMPRESSOR

Product Details

COMPRESSOR

Amps	6.5
Phase	Single
Voltage	220-240 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	24,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	1.39 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	69
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	353 lbs./hr.; 402 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.02”
Rated Load Amps (RLA)	12.1
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	60
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
