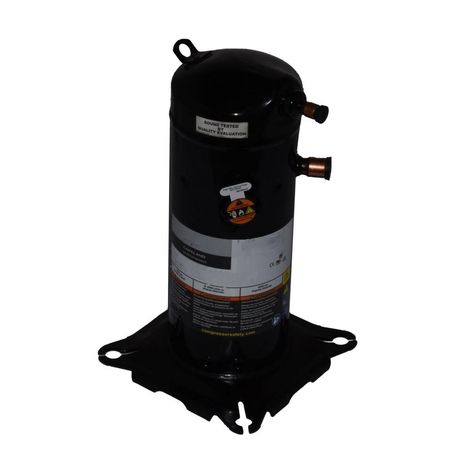

Carrier ZP27K6E-PFV-830

Name: Carrier ZP27K6E-PFV-830
Brand: Carrier
SKU: CS6225348
Availability: OutOfStock

SKU: CS6225348MPN: ZP27K6E-PFV-830

COMPRESSOR

Product Details

Amps	7.7
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	27,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	1.53 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	66
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	394 lbs./hr. to 447 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.02”
Rated Load Amps (RLA)	12.8
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C), 70°F (21.11°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	50F
Locked Rotor Amps (LRA)	72.2
Oil Charge Initial (oz.)	25 oz.
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
