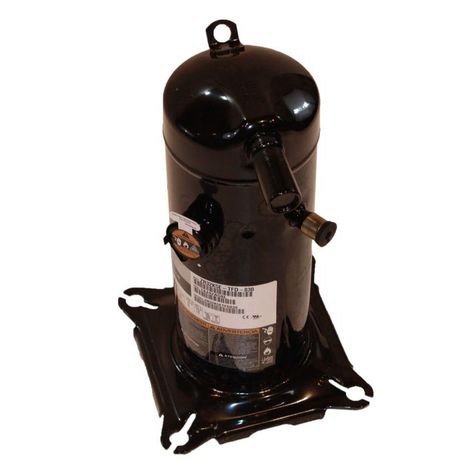

Carrier ZR32K5E-TFD-830
SKU: CS5783232MPN: ZR32K5E-TFD-830
COMPR 32K BTU 60-3-460 4
$2,544.57
UnitAvailable on backorder
Product Details
Attributes
| Amps | 6.4 |
| Phase | Three |
| Voltage | 380-420/460 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 32,600 |
| Protection | Internal Inherent Protection |
| Cycle/Hertz | 50/60 Hz |
| Refrigerant | R-134a; R-22; R-407C |
| Displacement | 2.69 in^3/Rev |
| Compressor Type | Scroll |
| Sound Level (dBA) | 68 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 85°F (29.44°C); 115°F (46.11°C) |
| Mass Flow (lbs/hr) | 477 lbs./hr.; 545 lbs./hr. |
| Mounting Dimensions | 7.5” x 7.5” x 16.08” |
| Rated Load Amps (RLA) | 6.4 |
| Substantial Commodity | Steel |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Return Gas Temperature | 65°F |
| Suction Line Size (OD) | ¾” |
| Evaporating Temperature | 50°F (10°C) |
| Locked Rotor Amps (LRA) | 38 |
| Oil Charge Initial (oz.) | 25 |
| Discharge Connection Type | Stub |
| Suction Line Fitting Type | Stub |
| Discharge Connection Size (OD) | ½” |
Specifications
| SKU | CS5783232 |
|---|---|
| MPN | ZR32K5E-TFD-830 |
You may also like
Carrier ZR57K3E-TFD-830
Contact us for pricing and availability
Carrier ZR32K5E-PFJ-830
Contact us for pricing and availability
Carrier ZR32K5E-PFV-830
$2,071.40Unit
Carrier ZP57K5E-TFD-830
Contact us for pricing and availability
Carrier CR47KQE-TFD-970
$3,849.63Unit
Carrier ZR48K5E-TFD-830
$3,258.54Unit
Carrier ZR144KCE-TFD-950
$7,838.75Unit
Carrier ZRU140KCE-TFD-980
Contact us for pricing and availability
Carrier CR28K6E-TFD-775
Contact us for pricing and availability
Carrier ZP54K6E-TFD-830
Contact us for pricing and availability

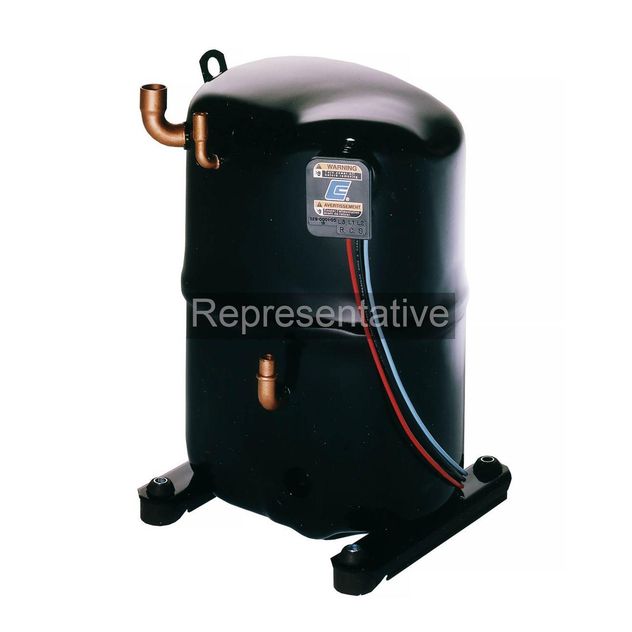

Carrier CRNQ-050E-TFD-970
