Carrier ZR32K5E-TF5-830

Name: Carrier ZR32K5E-TF5-830
Brand: Carrier
SKU: CS4231123
Price: 2544.57 USD
Availability: OutOfStock

SKU: CS4231123MPN: ZR32K5E-TF5-830Alternate Part #: CAR-ZR32K5E-TF5-830

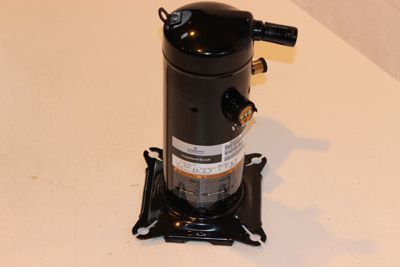

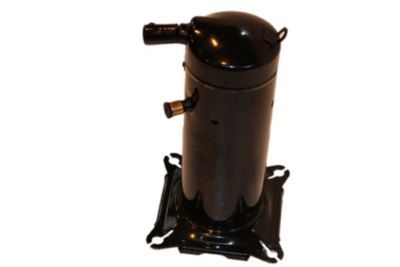

Factory Authorized Parts™ - ZR32K5E-TF5-830 Copeland Scroll Compressor, 208/230V 3Ph, R22, 12.0 RLA, 32,600 Capacity

$2,544.57

Unit

Available on backorder

Quantity

remove

add

Product Details

ZR32K5E-TF5-830 is a Copeland branded Scroll Compressor that is Three phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 32600 and use R-22 refrigerant.

Attributes

Amps	12
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	32,600
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	2.69 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	68
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	477 lbs./hr.; 545 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.08”
Rated Load Amps (RLA)	10.8
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F
Suction Line Size (OD)	¾”
Evaporating Temperature	50°F
Locked Rotor Amps (LRA)	73
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
