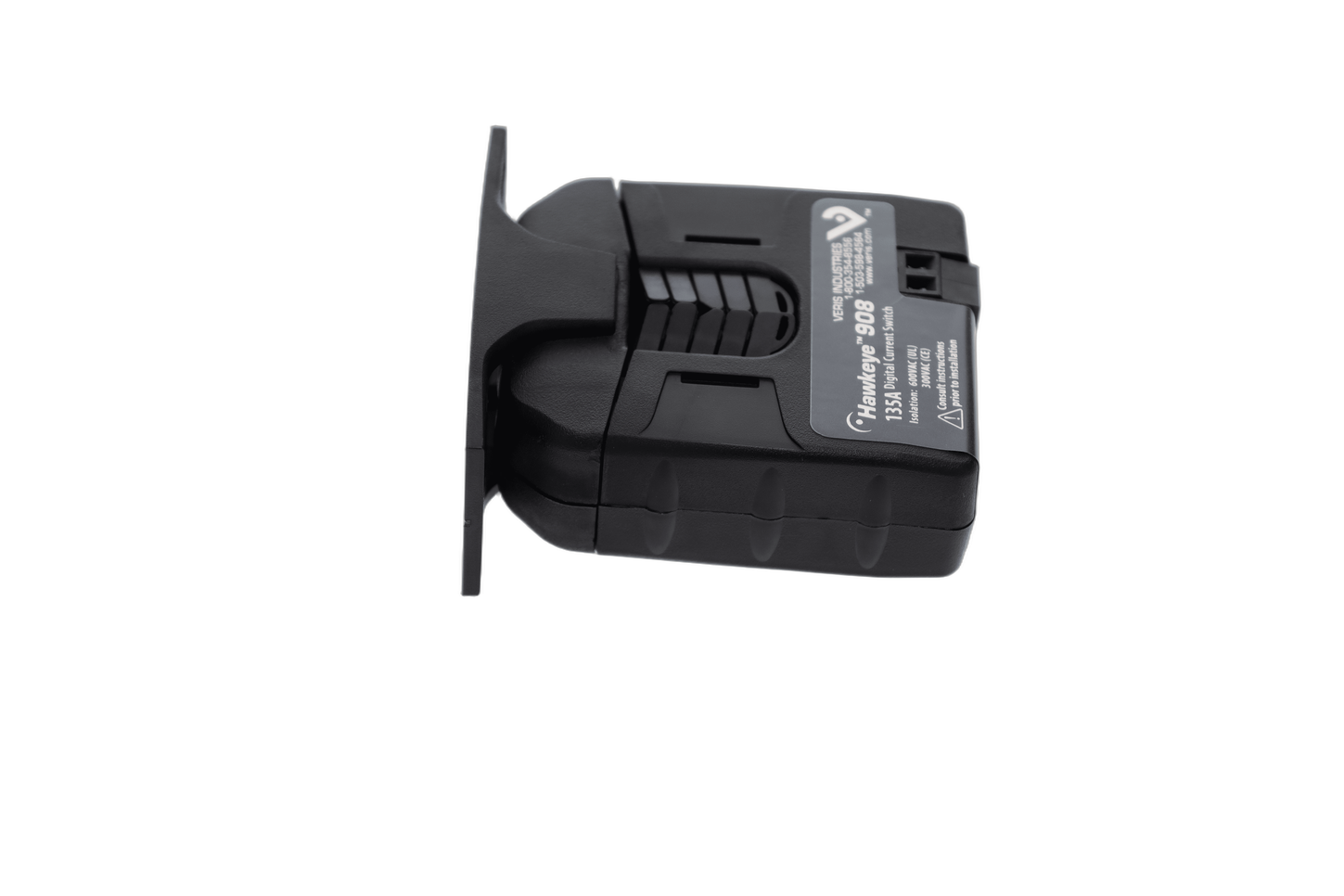

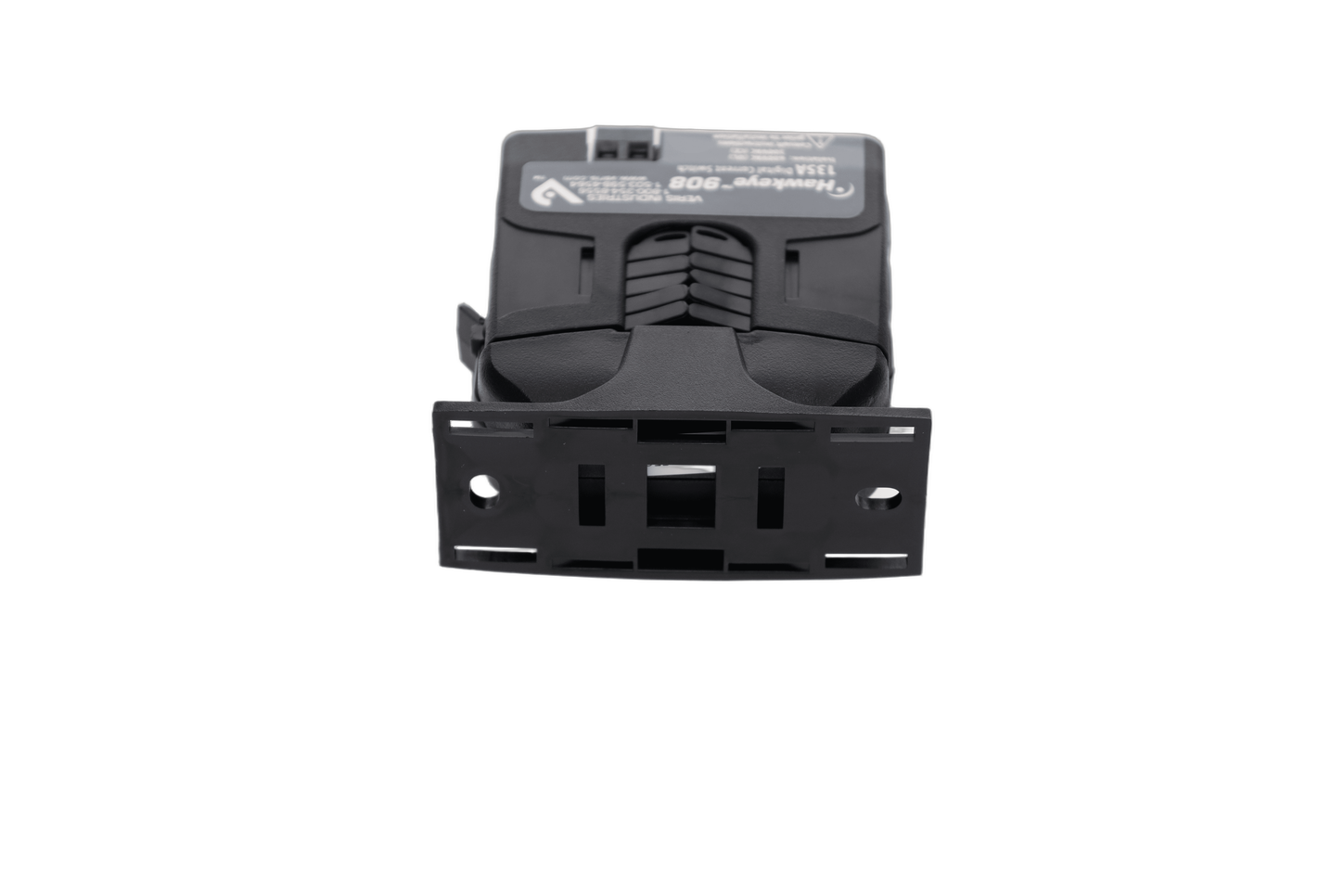

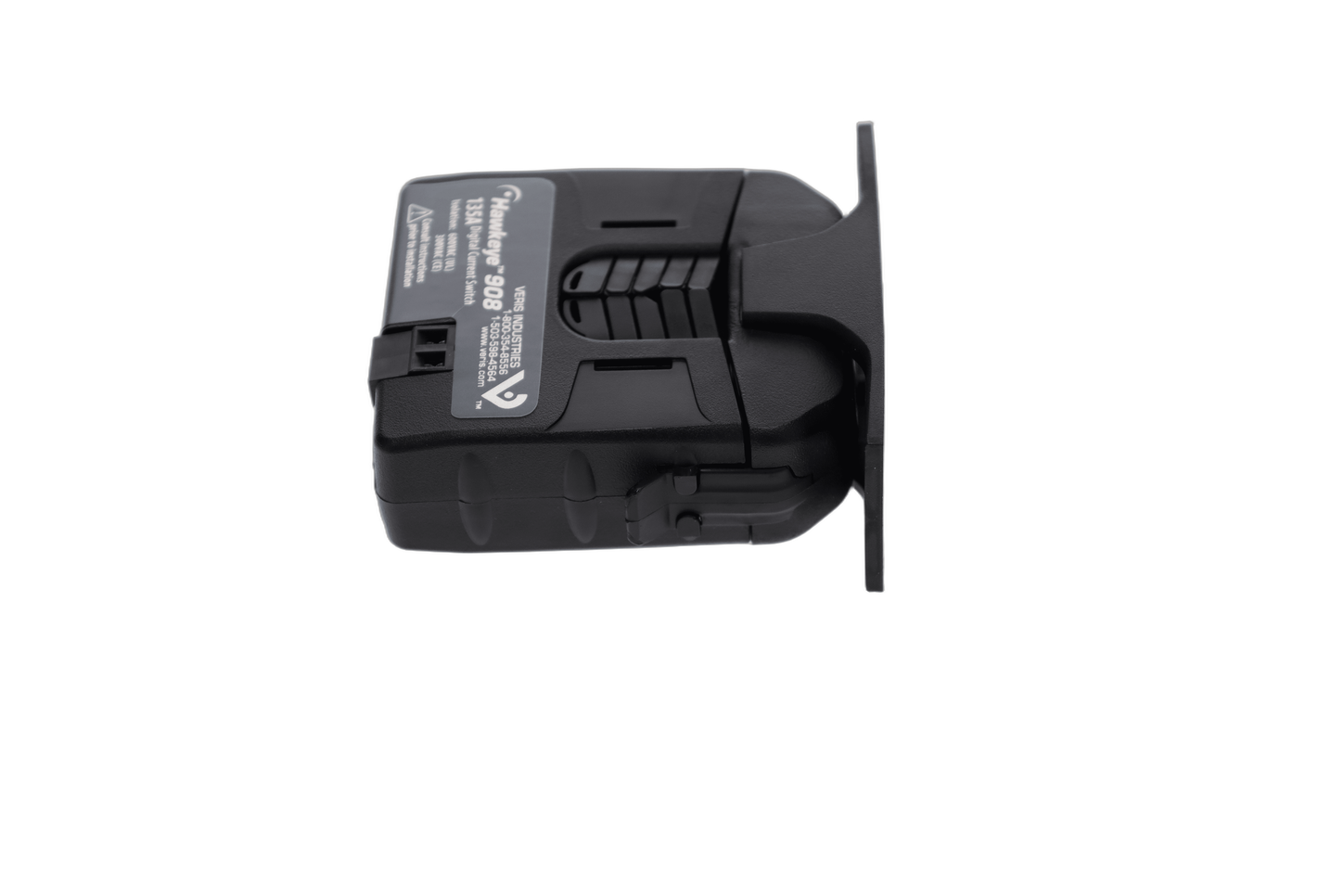

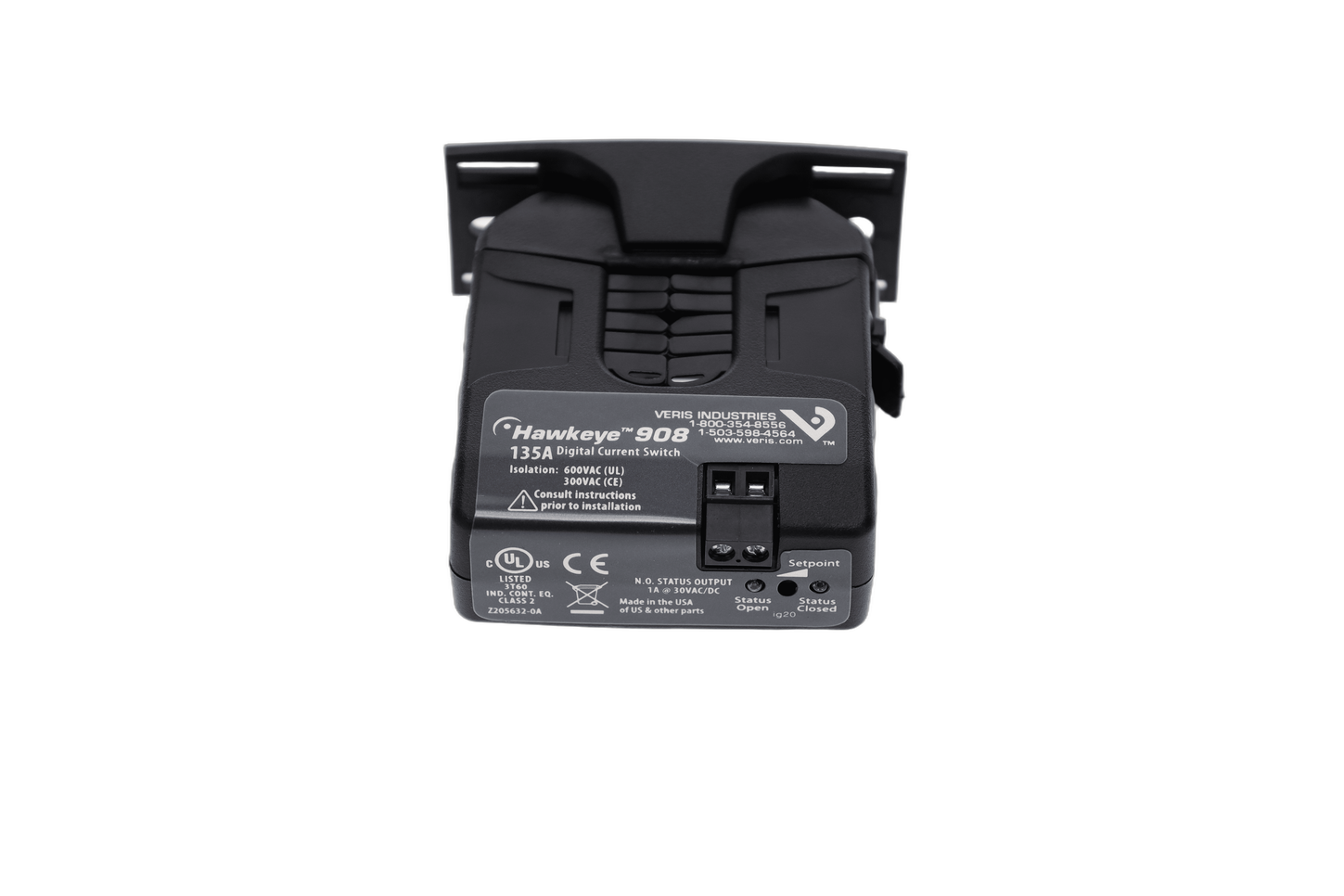

Veris H908
SKU: CS345047MPN: H908
Current Switch: Adjustable Trip Point, 2.5-135 Amp Range, Normally Open 1.0A@30VAC/DC Status Output, 2.5A or less, Split-Core Housing, Status LED
$67.82
Unit11 in stock
Product Details
Current Switch:
- Adjustable Trip Point* 2.5-135 Amperage Range* Normally Open 1.0A@30VAC/DC Status Output* 2.5A or less Minimum Trip Point* Split-Core Housing* Status LED* UL Listed* CE* RoHS Compliant
Attributes
| Sena Ambient Air Temperature For Operation | -15-60 °C |
| Sena Ambient Air Temperature For Operation 1 | -15-60 °C |
| Sena Ambient Air Temperature For Operation 2 | -15-60 °C |
| Sena Awg Gauge | AWG 24…AWG 14 |
| Sena Awg Gauge 1 | AWG 24…AWG 14 |
| Sena Current Measurement Range | 2.5…135 A |
| Sena Device Application | building automation systems |
| Sena Mounting Support | split core housing |
| Sena Network Frequency | 50…60 Hz |
| Sena Output Current | 1 A at 30 V AC/DC |
| Sena Output Current 1 | 1 A at 30 V AC/DC |
| Sena Output Current 2 | 1 A at 30 V AC/DC |
| Sena Product Certifications | UL# #CE |
| Sena Product Certifications 1 | UL# #CE |
| Sena Product Or Component Type | sensor |
| Sena Range Of Product | HX08 Series |
| Sena Relative Humidity | 10-90 % RH, non-condensing |
| Sena Relative Humidity 1 | 10-90 % RH, non-condensing |
| Sena Sensor Type | current switch, AC |
| Sena Sensor Type 1 | current switch, AC |
| Sena Type Of Measurement | AC current |
Specifications
| SKU | CS345047 |
|---|---|
| MPN | H908 |
