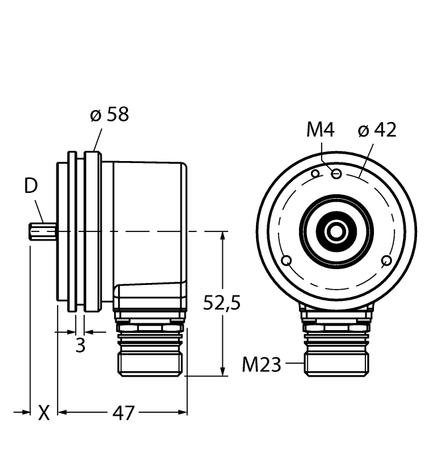

Turck RI-10S6S-2B1024-12M23
SKU: CS5978952MPN: RI-10S6S-2B1024-12M23Alternate Part #: 1544841UPC/EAN: 4047101262063
$541.94
UnitAvailable on backorder
Product Details
Incremental Encoder
Industrial Line
- Servo flange, Ø 58 mm
- Solid shaft, Ø 6mm x 10mm
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP67 on housing and shaft side
- ‐40…+85 °C
- Max. 6000 rpm (continuous operation 3000 rpm)
- 10…30 VDC
- M23 male, 12-pin
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 1024 pulses per revolution
Attributes
| Ambient Temperature | -40…+85 °C |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Connector |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 58 mm |
| Flange Type | Synchro flange |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Resolution Incremental | 1024 ppr |
| Shaft Diameter D Mm | 6 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS5978952 |
|---|---|
| MPN | RI-10S6S-2B1024-12M23 |
| Alternate Part # | 1544841 |
| UPC/EAN | 4047101262063 |
