Turck RI-10T10C-4B5000-12M23

SKU: CS3832436MPN: RI-10T10C-4B5000-12M23Alternate Part #: 1545426

1545426 - INCREMENTAL

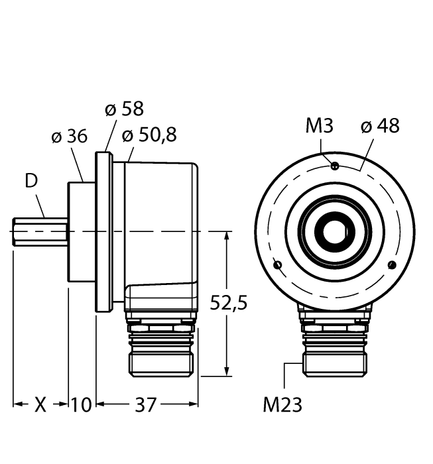

Turck RI-10S10C-2B2500-12M23, RI-10T10C-4B5000-12M23
$543.75
Unit
Available on backorder
remove
add

Product Details

Incremental Encoder

Industrial Line

  • Clamping flange, Ø 58 mm
  • Solid shaft, Ø 10 mm × 20 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5…30 VDC
  • Male connector, M23 x 1 , 12-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 5000 pulses per revolution

Attributes

Ambient Temperature -40…+85 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector
Encoder Line Industrial-Line
Flange Diameter Ø  58 mm
Flange Type Clamping flange
Housing Material Die-cast zinc
Operating Voltage 5…30 VDC
Output Function RS422, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Housing IP65
Protection Class Shaft IP65
Resolution Incremental 5000  ppr
Shaft Diameter D Mm 10 mm
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS3832436
MPNRI-10T10C-4B5000-12M23
Alternate Part #1545426
