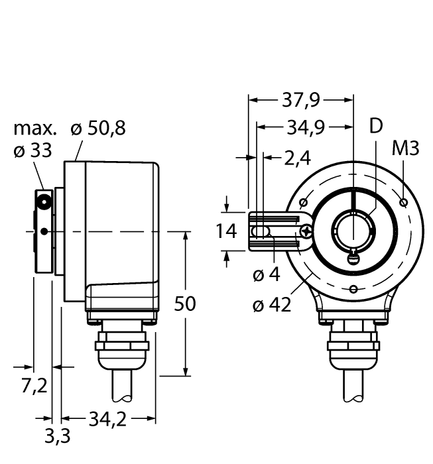

Turck RI-12H12T-2B1024-C1M
SKU: CS4083576MPN: RI-12H12T-2B1024-C1MAlternate Part #s: 1544903TUR-RI-12H12T-2B1024-C 1MUPC/EAN: 4047101262650
Contact us for pricing and availability
Product Details
Incremental Encoder
Industrial Line
- Flange with torque stop, Ø 50.8 mm
- Hollow shaft, Ø 12 mm
- Optical measuring principle
- Shaft material: stainless steel
- IP67 rated on shaft side
- ‐30 …+85 °C (with flexible use of cable -20 …+85 °C)
- Max. 6000 rpm (continuous operation 3000 rpm)
- 10…30 VDC
- Cable connection, 8-pole
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 1024 pulses per revolution
Attributes
| Ambient Temperature | -30…+85 °C |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Cable |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 50.8 mm |
| Flange Type | Flange with mounting element |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Resolution Incremental | 1024 ppr |
| Shaft Diameter D Mm | 12 mm |
| Shaft Type | Hollow shaft |
| Technology | Optical |
Specifications
| SKU | CS4083576 |
|---|---|
| MPN | RI-12H12T-2B1024-C1M |
| Alternate Part #s | 1544903, TUR-RI-12H12T-2B1024-C 1M |
| UPC/EAN | 4047101262650 |
