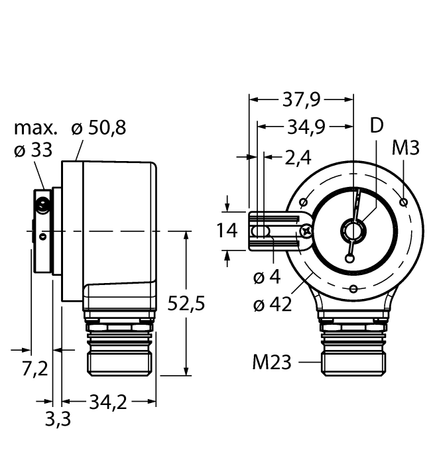

Turck RI-12H12T-2B1000-12M23
SKU: CS5974741MPN: RI-12H12T-2B1000-12M23Alternate Part #: 200007242
$543.75
UnitAvailable on backorder
Product Details
Incremental Hollow Shaft Encoder
Industrial Line
- Incremental Hollow Shaft Encoder
- Protection class IP67 on housing and shaft side
- ‐40…+85 °C
- Max. 6000 rpm (continuous operation 3000 rpm)
- 10…30 VDC
- M23 male, 12-pin
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 1000 pulses per revolution
Attributes
| Ambient Temperature | -40…+85 °C |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Connector |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 50.8 mm |
| Flange Type | Flange with mounting element |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Resolution Incremental | 1000 ppr |
| Shaft Diameter D Mm | 12 mm |
| Shaft Type | Hollow shaft |
| Technology | Optical |
Specifications
| SKU | CS5974741 |
|---|---|
| MPN | RI-12H12T-2B1000-12M23 |
| Alternate Part # | 200007242 |
