Turck RI-12H15E-2B1024-H1181
SKU: CS3832536MPN: RI-12H15E-2B1024-H1181Alternate Part #: 1544748UPC/EAN: 4047101258745
1544748 - INCREMENTAL
$541.94
UnitAvailable on backorder
Product Details

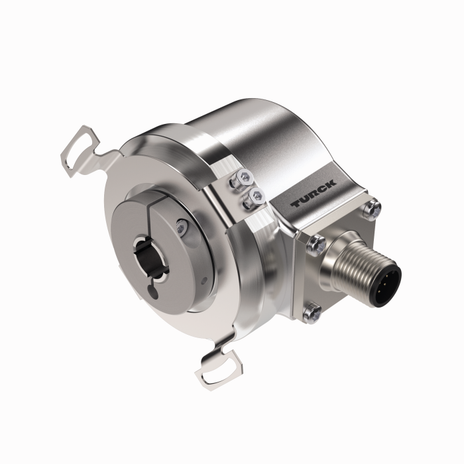

Incremental Encoder
Industrial Line

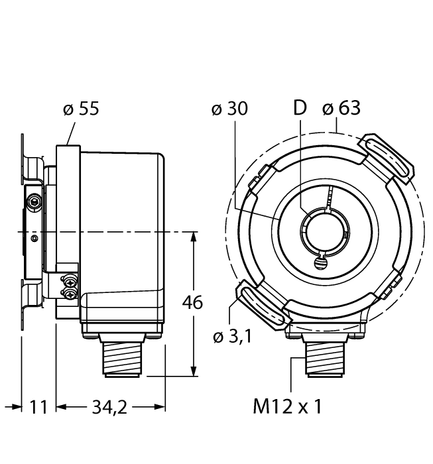

- Flange with slotted flex mount, Ø 63mm
- Hollow shaft, Ø 15mm
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP67 on housing and shaft side
- ‐40…+85 °C
- Max. 6000 rpm (continuous operation 3000 rpm)
- 10…30 VDC
- Male connector, M12 x 1 , 8-pole
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 1024 pulses per revolution
Attributes
| Ambient Temperature | -40…+85 °C |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 63 mm |
| Flange Type | Flange with stator coupling |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Housing | IP65 |
| Protection Class Shaft | IP67 |
| Resolution Incremental | 1024 ppr |
| Shaft Diameter D Mm | 15 mm |
| Shaft Type | Hollow shaft |
| Technology | Optical |
Specifications
| SKU | CS3832536 |
|---|---|
| MPN | RI-12H15E-2B1024-H1181 |
| Alternate Part # | 1544748 |
| UPC/EAN | 4047101258745 |
