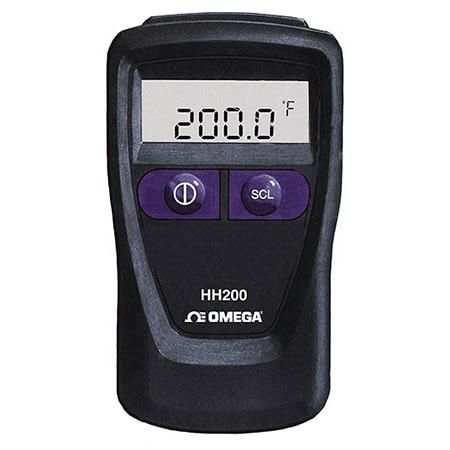

Omega HH200A
SKU: CS5798904MPN: HH200A
1 Channel 0.25% Accuracy 7 Type Thermocouple Meter
Product Details
- High Accuracy (±0.25% rdg +0.2°C for Thermocouple Input Models)
- Wide Ambient Operating Range: -30 to 50°C (-22 to 120°F)
- Autoranging (0.1° Resolution Up to 1000°, 1° Above 1000°)
- N \& R Thermocouples
Attributes
| Width | 70 mm |
| Height | 130 mm |
| Weight | 155 g |
| Series ID | HH200A-Series |
| Weight Note | 155 g (5.5 oz) |
| Battery life | 200 hr |
| Display Note | Display Units : °C or °F |
| Display Type | 3.5 Digit LCD |
| Sampling Rate | 3 Hz (3 updates/second) |
| Supply Voltage | 9 Vdc |
| Country of Origin | United Kingdom |
| Supply Power Note | 9 V, type MN1604 |
| Thermocouple Type | J, K, T, E, N, R, S |
| Number of Channels | 1 |
| Temperature Accuracy | ± 0.25% rdg + 0.2 °C |
| Electrical Connection | Sub-D Male Miniature Connector |
| Temperature Resolution | 0.1 °C |
| Temperature Coefficient | 0.01% of reading/°C |
| Temperature Sensor Type | Thermocouple |
| Temperature Accuracy Note | ± (0.25% rdg +0.2°C) |
| Cold Junction Compensation | 0.075°C/°C |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | -30 °C |
| Temperature Resolution Note | 0.1° to 1000°; 1° above 1000° (auto-ranging) |
Specifications
| SKU | CS5798904 |
|---|---|
| MPN | HH200A |
