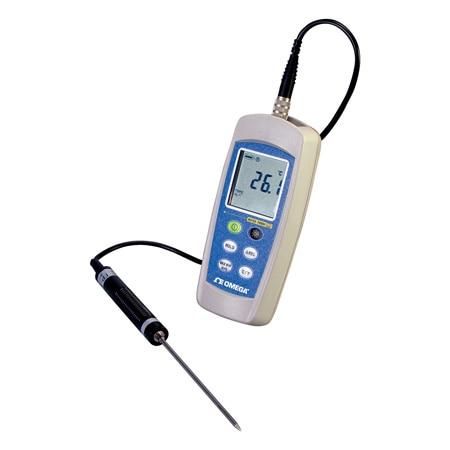

Omega HH370
SKU: CS3144963MPN: HH370
1 Channel RTD IP67 Waterproof Temperature Meter with Probe
Product Details
- IP67 Waterproof Construction
- NIST-Traceable Certificate Included (No Points)
- Selectable Pt100 or Pt1000 Input
- Max/Min/Average Temperature Recording
Attributes
| Width | 66 mm |
| Height | 150 mm |
| Length | 30 mm |
| Weight | 175 g |
| Series ID | HH370-Series |
| Weight Note | 175 g (6.2 oz) |
| Battery life | 100 hr |
| Display Type | 4 Digit LCD |
| Probe Length | 120 mm |
| Sampling Rate | 2 Hz (2 updates/second) |
| Sheath Length | 100 mm |
| Supply Voltage | 60 Vdc |
| Sheath Material | 304 Stainless Steel |
| Country of Origin | Taiwan |
| Power Consumption | 0.53 mA |
| Supply Power Note | Maximum Voltage at Temperature Input: 60 Vdc or 24 Vrms AC |
| Number of Channels | 1 |
| Temperature Accuracy | ± 0.1% of rdg + 0.4 °C |
| Probe Dimensions Note | Approx 120 mm (4.72”) |
| Relative Humidity, Max | 0.8 |
| Relative Humidity, Min | 0% |
| Temperature Resolution | 0.1 °C |
| Temperature Coefficient | For ambient temperatures from 0 to 18°C and 28 to 50°C, add 0.01% of rdg + 0.03°C or 0.01% of rdg + 0.06°F |
| Temperature Sensor Type | RTD |
| Storage Temperature Note | Storage Temperature and Humidity:-10 to 60°C (14 to 140°F); 0 to 80% RH |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -10 °C |
| Temperature Accuracy Note | Accuracy (at 23 ± 5°C): ± 0.1% of rdg + 0.4°C (± 0.1% of rdg + 0.8°F) Probe Accuracy : IEC751, Class A ± 0.15°C ± 0.002t (t = measurement temperature) |
| Operating Temperature Note | Operating Temperature/Humidity:0 to 50°C (32 to 122°F); 0 to 80% RH |
| Measuring Temperature Range, Max | 300 °C |
| Measuring Temperature Range, Min | -100 °C |
Specifications
| SKU | CS3144963 |
|---|---|
| MPN | HH370 |
