Process InstrumentationOmega

Omega RH318

SKU: CS5800669MPN: RH318

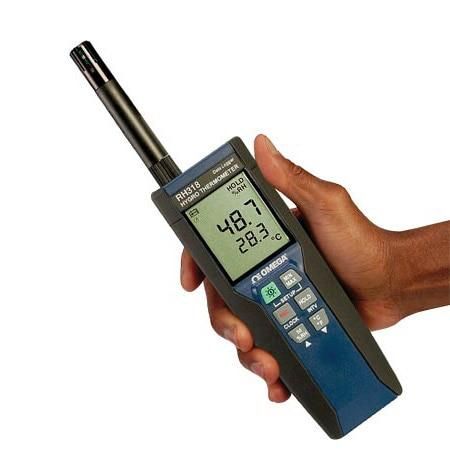

Handheld Hygro-Thermometer Data Logger

Omega RH318
$580.69
Unit
Available on backorder
remove
add

Documents

Product Details

  • Thermistor Sensor for Temperature Measurement, Fast Response Time
  • Large Backlit Dual LCD Display, MAX/MIN/HOLD Function
  • Dew Point Measurement
  • 16,000 Record Data Logger

Attributes

Width 36 mm
Height 185 mm
Length 65 mm
Weight 285 g
Series ID RH318-Series
Hysteresis <1.5%RH
Weight Note Approximately 285 g (10 oz)
Battery life 80 hr
Display Type LCD
Probe Length 94 mm
Response Time 10 sec
Sampling Rate 2 Hz (2 updates/second)
Probe Diameter 15 mm
Supply Voltage 9 Vdc
Measurement Type Dew Point, Relative Humidity, Temperature
Country of Origin Taiwan
Sampling Rate Note 2 Times/sec
Temperature Accuracy ± 0.8 °C
Additional Features 1 Data Logging Capability
Humidity Response Time 180 sec
Temperature Resolution 0.1 °C
Temperature Coefficient 0.1 x (specified accuracy) per 1°C (<23°C or >23°C)
Temperature Sensor Type Capacitance
Process Temperature, Max 60 °C
Process Temperature, Min -20 °C
Storage Temperature, Max 60 °C
Storage Temperature, Min -10 °C
Temperature Accuracy Note Probe: RP-32 90%RH ± 4.0%RH 10%RH to 90%RH ± 2.0%RH -20 to 60°C (-4 to 140°F) ± 0.8°C (± 1.5°F) Probe: RP-31 90%RH ± 5.0%RH 10%RH to 90%RH ± 3.0%RH -15 to 35°C (-60 to 95°F) ± 0.8°C (± 1.5°F) 35°C (95°F)
Temperature Resolution Note 0.1%RH, 0.1°C, 0.1°F
Measuring Temperature Range, Max 60 °C
Measuring Temperature Range, Min -20 °C

Specifications

SKUCS5800669
MPNRH318
