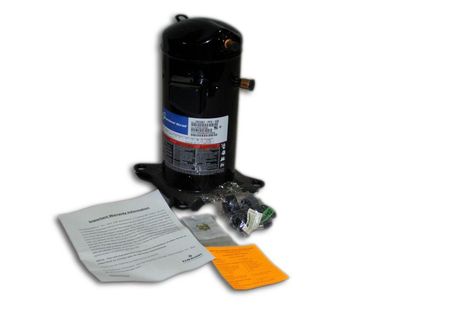

Carrier ZR26K3-PFV-930

Name: Carrier ZR26K3-PFV-930
Brand: Carrier
SKU: CS5792173
Price: 771.27 USD
Availability: OutOfStock

SKU: CS5792173MPN: ZR26K3-PFV-930

COMPRESSOR

Product Details

Amps	13.6
Phase	Single
Voltage	208-230 VAC
Oil Type	Mineral (MO)
UL Listed	Yes
BTU Output	26,200
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	2.2 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	68
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	389 lbs/hr; 403 lbs/hr
Mounting Dimensions	7.5” x 7.5” x 15.08”
Rated Load Amps (RLA)	12.2
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	67
Oil Charge Initial (oz.)	34
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
