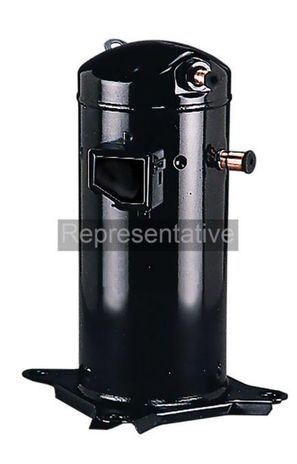

Carrier ZR47K3-PFV-935

Name: Carrier ZR47K3-PFV-935
Brand: Carrier
SKU: CS5467049
Availability: OutOfStock

SKU: CS5467049MPN: ZR47K3-PFV-935

COMPRESSOR

Product Details

Amps	13.3
Phase	Single
Voltage	208-230 VAC
Oil Type	Mineral (MO)
UL Listed	Yes
BTU Output	47,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	3.86 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	705 lbs./hr.; 725 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.18”
Rated Load Amps (RLA)	19.2
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	137
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
