Carrier ZP24K5E-PFV-830

Name: Carrier ZP24K5E-PFV-830
Brand: Carrier
SKU: CS1180833
Availability: OutOfStock

SKU: CS1180833MPN: ZP24K5E-PFV-830Alternate Part #: CAR-ZP24K5E-PFV-830UPC/EAN: 662442948007

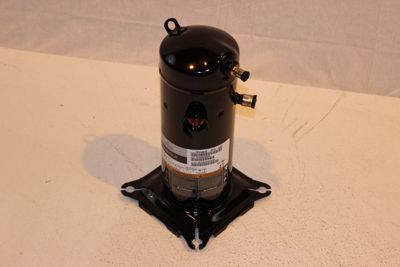

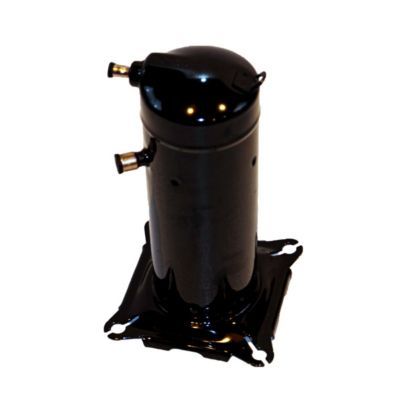

Factory Authorized Parts™ - ZP24K5E-PFV-830 Copeland Scroll Compressor 208/230V 1Ph, R-410A, 14.3 RLA, 24000 Capacity

Discontinued - Contact Us For Pricing & Availability

Documents

Carrier Data Sheet
Carrier, Copeland ZP16K5E-PFV-830, ZP51K5E-TFD-830, ZR16M3E TWD 961, ZR18K5E PFV 830, ZR32K5E PFV 830, ZR38K5E PFV 830, ZR42K5E TF5 830, ZR57K3E TF5 950, ZR68KCE TF5 950, ZR68KCE TFE 930 Installation Instructions

Product Details

ZP24K5E-PFV-830 is a Copeland branded Scroll Compressor that is Single phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 24000 and use R-410a refrigerant.

Features:

ZP’S for high efficiency - EER 11.0 plus
Low Noise \& Vibration levels
Inherent motor protection
Centrifugal oil pump
For Heat Pump \& Air Conditioning duty
POE Oil

Attributes

Amps	7
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	24,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	1.39 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	66
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	353 lbs./hr.; 403 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.02”
Rated Load Amps (RLA)	14.3
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	64
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
