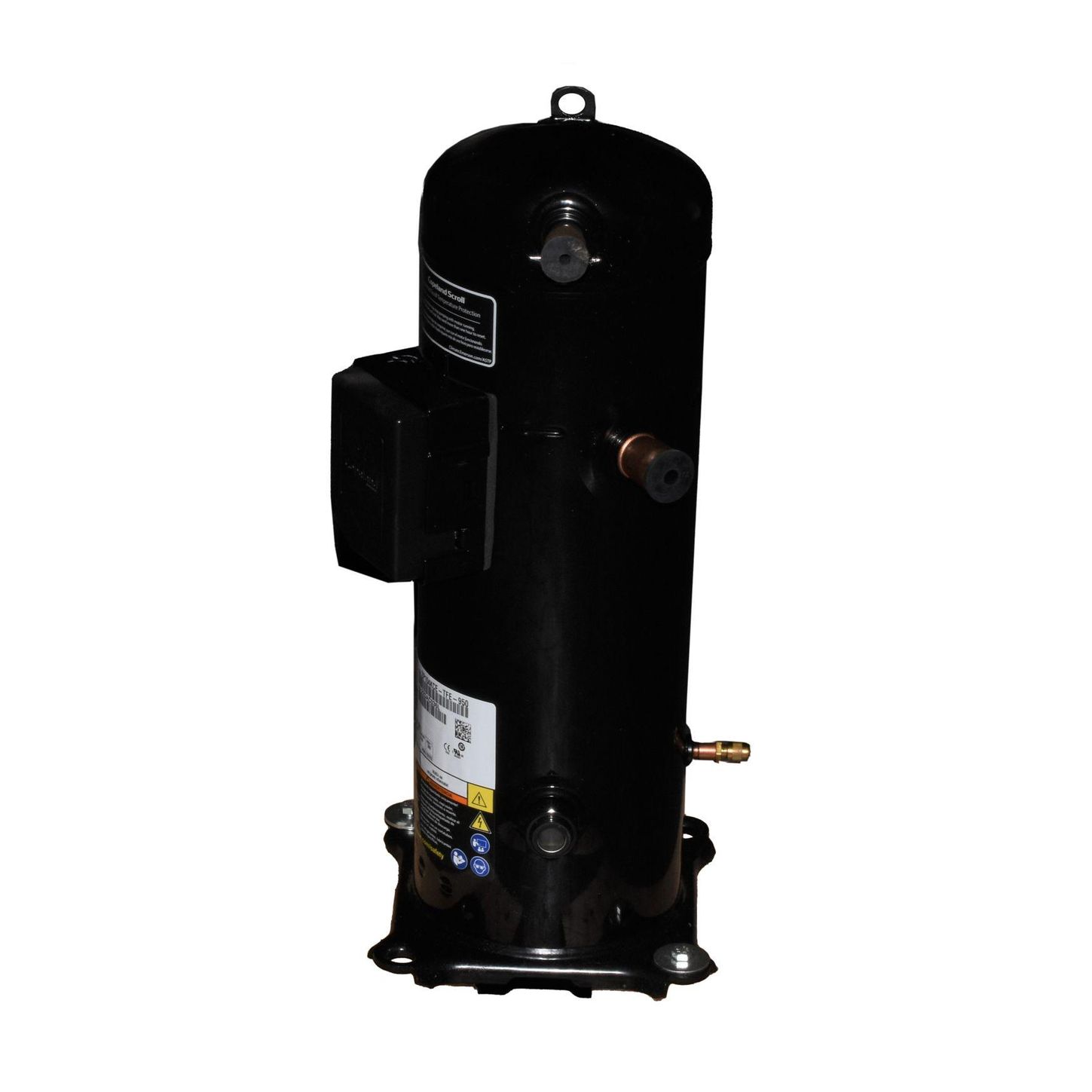

Carrier ZP104KCE-TFE-950

Name: Carrier ZP104KCE-TFE-950
Brand: Carrier
SKU: CS5785575
Availability: OutOfStock

SKU: CS5785575MPN: ZP104KCE-TFE-950

COMPRESSOR (575V)

Product Details

Amps	10.1
Phase	Three
Voltage	575 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	94,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	5.88 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	76
Compressor Housing	Hermetic
Liquid Temperature	105°F to 115°F (40.56°C to 46.11°C)
Mass Flow (lbs/hr)	1310 lbs./hr.; 1565 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 22.75”
Rated Load Amps (RLA)	11.3
Substantial Commodity	Steel
Condensing Temperature	120°F to 130°F (48.89°C to 54.44°C)
Return Gas Temperature	55°F (12.78°C)
Suction Line Size (OD)	1 ⅛”
Evaporating Temperature	35°F (1.67°C)
Locked Rotor Amps (LRA)	93.7
Oil Charge Initial (oz.)	85
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	⅞”
