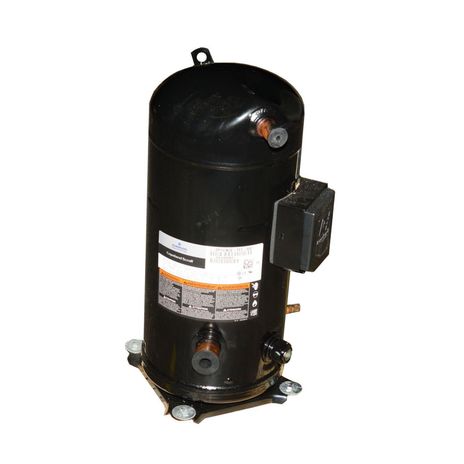

Carrier ZP137KCE-TF5-950
SKU: CS5466988MPN: ZP137KCE-TF5-950
COMPRESSOR
$5,899.78
UnitAvailable on backorder
Product Details
Attributes
| Amps | 53.6 |
| Phase | Three |
| Voltage | 200-220/200-230 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 137,000 |
| Protection | Internal Inherent Protection |
| Cycle/Hertz | 50/60 Hz |
| Refrigerant | R-410A; R-410B |
| Displacement | 7.76 (in^3/Rev) |
| Compressor Type | Scroll |
| Sound Level (dBA) | 80 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 105°F to 115°F (40.56°C to 46.11°C) |
| Mass Flow (lbs/hr) | 1710 lbs./hr.; 2020 lbs./hr. |
| Mounting Dimensions | 7.5” x 7.5” x 21.75” |
| Rated Load Amps (RLA) | 48.1 |
| Substantial Commodity | Steel |
| Condensing Temperature | 120°F to 130°F (48.89°C to 54.44°C) |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Size (OD) | 1 ⅜” |
| Evaporating Temperature | 45°F (7.22°C) |
| Locked Rotor Amps (LRA) | 245 |
| Oil Charge Initial (oz.) | 110 |
| Discharge Connection Type | Stub |
| Suction Line Fitting Type | Stub |
| Discharge Connection Size (OD) | ⅞” |
Specifications
| SKU | CS5466988 |
|---|---|
| MPN | ZP137KCE-TF5-950 |
