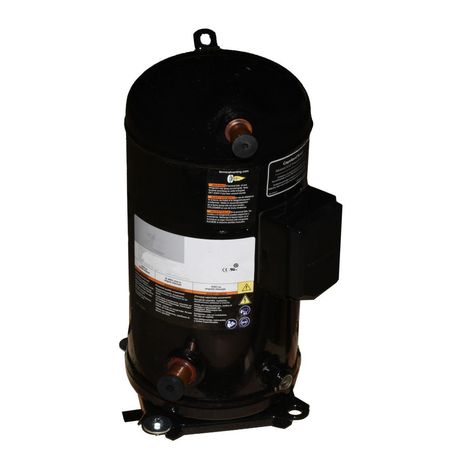

Carrier ZP90KCE-TF5-950

Name: Carrier ZP90KCE-TF5-950
Brand: Carrier
SKU: CS5467034
Availability: OutOfStock

SKU: CS5467034MPN: ZP90KCE-TF5-950

XS COMPRESSOR

Product Details

Amps	32.9
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	90,500
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A; R-410B
Displacement	5.14 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	77
Compressor Housing	Hermetic
Liquid Temperature	105°F to 115°F (40.56°C to 46.11°C)
Mass Flow (lbs/hr)	1120 lbs./hr.; 1340 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 19.5”
Rated Load Amps (RLA)	29.5
Substantial Commodity	Steel
Condensing Temperature	120°F to 130°F (48.89°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	1 ⅛”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	195
Oil Charge Initial (oz.)	85
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	⅞”
