Eaton 021624

Name: Eaton 021624
Brand: Eaton
SKU: CS5483086
Price: 44.13 USD
Availability: OutOfStock

SKU: CS5483086MPN: 021624Alternate Part #: MSAA021624UPC/EAN: 4015080216247

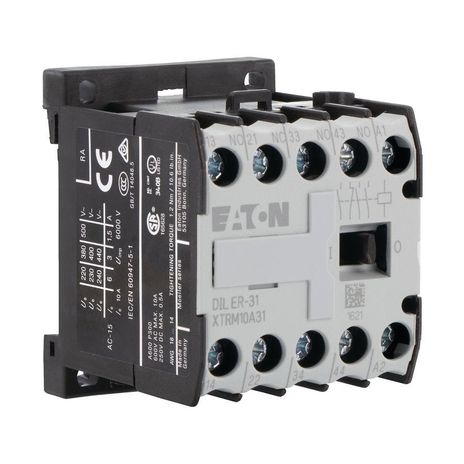

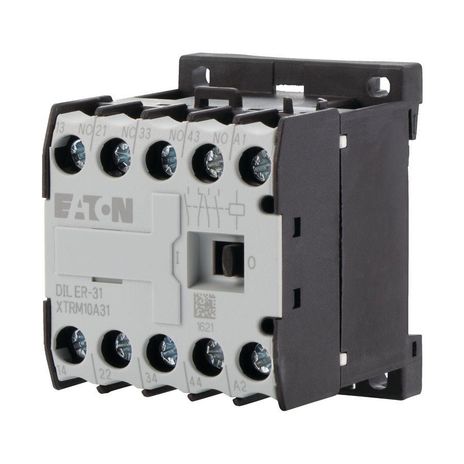

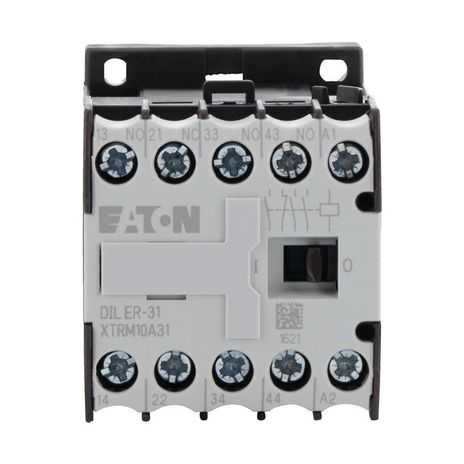

Eaton Moeller® series DILER Control relay

Eaton 021624, XTRM10A31A, XTRM10A31B, XTRM10A31BD, XTRM10A31C, XTRM10A31RD, XTRM10A31T, XTRM10A31W, XTRM10A31Y

Product Details

Eaton Moeller® series DILER Contactor relay, 110 V 50/60 Hz, N/O \= Normally open: 3 N/O, N/C \= Normally closed: 1 NC, Screw terminals, AC operation

Attributes

10 10 Temperature Rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance	Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures	Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat	Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects	Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation	Meets the product standard’s requirements.
10 2 5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact	Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions	Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances	Meets the product standard’s requirements.
10 5 Protection Against Electric Shock	Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components	Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections	Is the panel builder’s responsibility.
10 8 Connections For External Conductors	Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength	Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage	Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material	Is the panel builder’s responsibility.
Actuating Voltage	110 V 50/60 Hz
Ambient Operating Temperature Enclosed Max	40 CEL
Ambient Operating Temperature Enclosed Max Uom	CEL
Ambient Operating Temperature Enclosed Min	-25 CEL
Ambient Operating Temperature Enclosed Min Uom	CEL
Ambient Operating Temperature Max	50 CEL
Ambient Operating Temperature Max Uom	CEL
Ambient Operating Temperature Min	-25 CEL
Ambient Operating Temperature Min Uom	CEL
Application	Contactor relays
Climatic Proofing	Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Code Number	31E
Connection Type Auxiliary Circuit	Screw connection
Control Circuit Reliability	< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Conventional Thermal Current Ith At 50 C 3 Pole Open	10 AMP
Conventional Thermal Current Ith At 50 C 3 Pole Open Uom	AMP
Degree Of Protection	IP20
Duty Factor	100 %
Equipment Heat Dissipation Current Dependent Pvid	0 WTT
Equipment Heat Dissipation Current Dependent Pvid Uom	WTT
Features	Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module
Fitted With	Interlocked opposing contacts
Heat Dissipation Capacity Pdiss	0 WTT
Heat Dissipation Capacity Pdiss Uom	WTT
Heat Dissipation Per Pole Current Dependent Pvid	0.4 WTT
Heat Dissipation Per Pole Current Dependent Pvid Uom	WTT
Lifespan Mechanical	10,000,000 Operations (AC operated)
Mounting Method	DIN-rail/screw
Mounting Position	As required (except vertical with terminals A1/A2 at the bottom)
Number Of Auxiliary Contacts Change Over Contacts	0.0000
Number Of Auxiliary Contacts Normally Closed Contacts	1.0000
Number Of Auxiliary Contacts Normally Closed Contacts Delayed Switching	0.0000
Number Of Auxiliary Contacts Normally Open Contacts	3.0000
Number Of Auxiliary Contacts Normally Open Contacts Leading	0.0000
Number Of Contacts Normally Closed Contacts	1.0000
Number Of Contacts Normally Open Contacts	3.0000
Operating Frequency	9000 Operations/h
Operating Voltage At Ac 50 Hz Max	500 VLT
Operating Voltage At Ac 50 Hz Max Uom	VLT
Operating Voltage At Ac 50 Hz Min	17 VLT
Operating Voltage At Ac 50 Hz Min Uom	VLT
Operating Voltage At Ac 60 Hz Max	500 VLT
Operating Voltage At Ac 60 Hz Max Uom	VLT
Operating Voltage At Ac 60 Hz Min	17 VLT
Operating Voltage At Ac 60 Hz Min Uom	VLT
Operating Voltage At Dc Max	220 VDC
Operating Voltage At Dc Max Uom	VDC
Operating Voltage At Dc Min	24 VDC
Operating Voltage At Dc Min Uom	VDC
Overvoltage Category	III
Pick Up Voltage	0.8 - 1.1 V AC x Uc (voltage tolerance - single-voltage coil 50 Hz and dual-voltage coil 50 Hz, 60 Hz) 0.85 - 1.1 V AC x Uc (voltage tolerance - dual frequency coil 50/60 Hz)
Pollution Degree	3.0000
Power Consumption Sealing 50 Hz	1.8 W, Dual-frequency coil in a cold state and 1.0 x Us 5.4 VA, Dual-frequency coil in a cold state and 1.0 x Us 3.9 VA, Dual-frequency coil in a cold state and 1.0 x Us
Power Consumption Sealing 60 Hz	3.9 VA, Dual-frequency coil in a cold state and 1.0 x Us 1.8 W, Dual-frequency coil in a cold state and 1.0 x Us 5.4 VA, Dual-frequency coil in a cold state and 1.0 x Us
Product Category	DILER Mini-contactors
Protection	Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated Control Supply Voltage Us At Ac 50 Hz Max	110 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	110 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	110 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	110 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	0 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	0 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Impulse Withstand Voltage Uimp	6000 V AC
Rated Insulation Voltage Ui	690 VLT
Rated Insulation Voltage Ui Uom	VLT
Rated Operational Current For Specified Heat Dissipation In	6 AMP
Rated Operational Current For Specified Heat Dissipation In Uom	AMP
Rated Operational Current Ie	2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series) 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series) 0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series) 1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series) 10 A
Rated Operational Current Ie At Ac 15 220 V 230 V 240 V	6 AMP
Rated Operational Current Ie At Ac 15 220 V 230 V 240 V Uom	AMP
Rated Operational Current Ie At Ac 15 380 V 400 V 415 V	3 AMP
Rated Operational Current Ie At Ac 15 380 V 400 V 415 V Uom	AMP
Rated Operational Current Ie At Ac 15 500 V	1.5 AMP
Rated Operational Current Ie At Ac 15 500 V Uom	AMP
Rated Operational Voltage Ue At Ac Max	600 VLT
Rated Operational Voltage Ue At Ac Max Uom	VLT
Rated Switch Current	10 AMP
Rated Switch Current Uom	AMP
Safe Isolation	300 V AC, Between auxiliary contacts, According to EN 61140 300 V AC, Between coil and auxiliary contacts, According to EN 61140
Screw Size	M3.5, Terminal screw
Screwdriver Size	2, Terminal screw, Pozidriv screwdriver 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
Shock Resistance	10 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 8 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Short Circuit Protection Rating	10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts
Short Circuit Protection Rating Without Welding	6 A gG/gL, 500 V, Max. Fuse, Contacts
Static Heat Dissipation Non Current Dependent Pvs	1.8 WTT
Static Heat Dissipation Non Current Dependent Pvs Uom	WTT
Switching Capacity Auxiliary Contacts General Use	0.5 A, 250 V DC, (UL/CSA) 10 A, 600 V AC, (UL/CSA)
Switching Capacity Auxiliary Contacts Pilot Duty	P300, DC operated (UL/CSA) A600, AC operated (UL/CSA)
Switching Time Ac Operated Make Contacts Closing Delay Max	21 C26
Switching Time Ac Operated Make Contacts Closing Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Closing Delay Min	14 C26
Switching Time Ac Operated Make Contacts Closing Delay Min Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Max	18 C26
Switching Time Ac Operated Make Contacts Opening Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Min	8 C26
Switching Time Ac Operated Make Contacts Opening Delay Min Uom	C26
Switching Time Ac Operated N O With Auxiliary Contact Module Closing Delay	45 C26
Switching Time Ac Operated N O With Auxiliary Contact Module Closing Delay Uom	C26
Terminal Capacity Flexible With Ferrule	1 x (0.75 - 1.5) mm² 2 x (0.75 - 1.5) mm²
Terminal Capacity Solid	2 x (0.75 - 2.5) mm² 1 x (0.75 - 2.5) mm²
Terminal Capacity Solid Stranded Awg	2 x (18 - 14) 18 - 14 1 x (18 - 14)
Voltage Type	AC
Voltage Type Of Operating Voltage	AC/DC
