Eaton 293988

Name: Eaton 293988
Brand: Eaton
SKU: CS5021285
Price: 202.29 USD
Availability: OutOfStock

SKU: CS5021285MPN: 293988UPC/EAN: 04015082939885

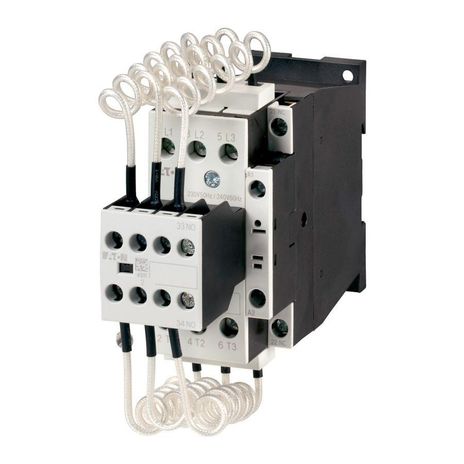

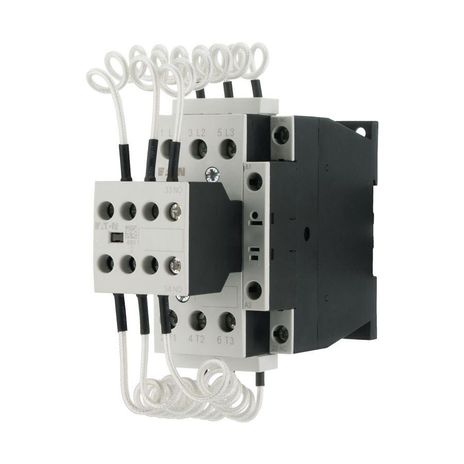

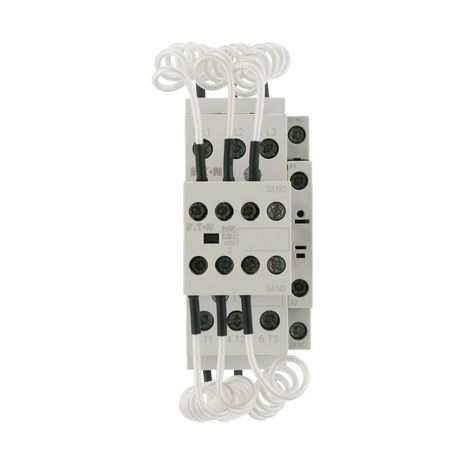

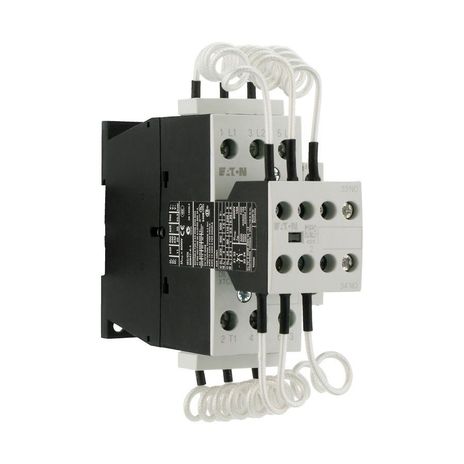

Eaton Moeller® series DILK capacity contactor

Product Details

Eaton Moeller® series DILK Contactor for capacitors, with series resistors, 12.5 kVAr, 230 V 50 Hz, 240 V 60 Hz

Attributes

10 10 Temperature Rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance	Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures	Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat	Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects	Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation	Meets the product standard’s requirements.
10 2 5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact	Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions	Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances	Meets the product standard’s requirements.
10 5 Protection Against Electric Shock	Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components	Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections	Is the panel builder’s responsibility.
10 8 Connections For External Conductors	Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength	Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage	Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material	Is the panel builder’s responsibility.
Ambient Operating Temperature Enclosed Max	40 FAH
Ambient Operating Temperature Enclosed Max Uom	FAH
Ambient Operating Temperature Enclosed Min	25 FAH
Ambient Operating Temperature Enclosed Min Uom	FAH
Ambient Operating Temperature Max	60 FAH
Ambient Operating Temperature Max Uom	FAH
Ambient Operating Temperature Min	-25 FAH
Ambient Operating Temperature Min Uom	FAH
Application	Contactors for power factor correction
Arcing Time	10 ms
Connection	Screw terminals
Degree Of Protection	IP00
Drop Out Voltage	AC operated: 0.6 - 0.3 x UC, AC operated
Duty Factor	100 %
Electrical Connection Type Of Main Circuit	Screw connection
Emitted Interference	According to EN 60947-1
Equipment Heat Dissipation Current Dependent Pvid	2.1 WTT
Equipment Heat Dissipation Current Dependent Pvid Uom	WTT
Fitted With	Series resistors
Heat Dissipation Capacity Pdiss	0 WTT
Heat Dissipation Capacity Pdiss Uom	WTT
Heat Dissipation Per Pole Current Dependent Pvid	0.7 WTT
Heat Dissipation Per Pole Current Dependent Pvid Uom	WTT
Interference Immunity	According to EN 60947-1
Lifespan Electrical	150,000 Operations
Making Capacity Without Damping I Peak Value	180 x Ie
Number Of Auxiliary Contacts Change Over Contacts	0.0000
Number Of Auxiliary Contacts Normally Closed Contacts	1.0000
Number Of Auxiliary Contacts Normally Open Contacts	1.0000
Number Of Contacts Normally Closed As Main Contact	0.0000
Number Of Main Contacts Normally Open Contact	3.0000
Operating Frequency	120 Operations/h
Operating Voltage At Ac 50 Hz Max	690 VLT
Operating Voltage At Ac 50 Hz Max Uom	VLT
Operating Voltage At Ac 50 Hz Min	230 VLT
Operating Voltage At Ac 50 Hz Min Uom	VLT
Operating Voltage At Ac 60 Hz Max	690 VLT
Operating Voltage At Ac 60 Hz Max Uom	VLT
Operating Voltage At Ac 60 Hz Min	230 VLT
Operating Voltage At Ac 60 Hz Min Uom	VLT
Pick Up Voltage	0.8 - 1.1 V AC x Uc
Power Consumption Pick Up 50 Hz	58 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
Power Consumption Pick Up 60 Hz	71 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
Power Consumption Sealing 50 Hz	2.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz 7.6 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
Power Consumption Sealing 60 Hz	9.3 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz 2.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
Product Category	DILK Contactors for capacitors
Protection	Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated Blind Power	12.5 kvar
Rated Blind Power At 400 V 60 Hz	12.5 WTT
Rated Blind Power At 400 V 60 Hz Uom	WTT
Rated Control Supply Voltage Us At Ac 50 Hz Max	230 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	230 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	240 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	240 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	0 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	0 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Operational Current For Specified Heat Dissipation In	18 AMP
Rated Operational Current For Specified Heat Dissipation In Uom	AMP
Rated Operational Current Ie	18 A at 400 V (three-phase capacitors, open) 18 A at 525 V (three-phase capacitors, open) 18 A at 230 V (three-phase capacitors, open) 18 A at 690 V (three-phase capacitors, open) 16 A at 525 V (three-phase capacitors, enclosed) 16 A at 690 V (three-phase capacitors, enclosed) 16 A at 400 V (three-phase capacitors, enclosed) 16 A at 230 V (three-phase capacitors, enclosed)
Rated Switch Current	18 AMP
Rated Switch Current Uom	AMP
Special Purpose Rating Of Capacitor Switching	18 A, 240 V 60 Hz 3phase, (UL/CSA) 15 kVar, 600 V 60 Hz 3phase, (UL/CSA) 7.5 kVar, 240 V 60 Hz 3phase, (UL/CSA) 15 kVar, 480 V 60 Hz 3phase, (UL/CSA) 18 A, 480 V 60 Hz 3phase, (UL/CSA) 14.4 A, 600 V 60 Hz 3phase, (UL/CSA)
Static Heat Dissipation Non Current Dependent Pvs	2.1 WTT
Static Heat Dissipation Non Current Dependent Pvs Uom	WTT
Switching Capacity Auxiliary Contacts General Use	10 A, 600 V AC, (UL/CSA) 1 A, 250 V DC, (UL/CSA)
Switching Capacity Auxiliary Contacts Pilot Duty	A600, AC operated (UL/CSA) P300, DC operated (UL/CSA)
Switching Time Ac Operated Make Contacts Closing Delay Max	22 C26
Switching Time Ac Operated Make Contacts Closing Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Closing Delay Min	16 C26
Switching Time Ac Operated Make Contacts Closing Delay Min Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Max	14 C26
Switching Time Ac Operated Make Contacts Opening Delay Max Uom	C26
Terminal Capacity Flexible With Ferrule	1 x (0.75 - 16) mm², Main cables
Terminal Capacity Solid	1 x (0.75 - 16) mm², Main cables
Terminal Capacity Solid Stranded Awg	18 - 6, Main cables
Terminal Capacity Stranded	1 x 16 mm², Main cables
Voltage Type	AC
