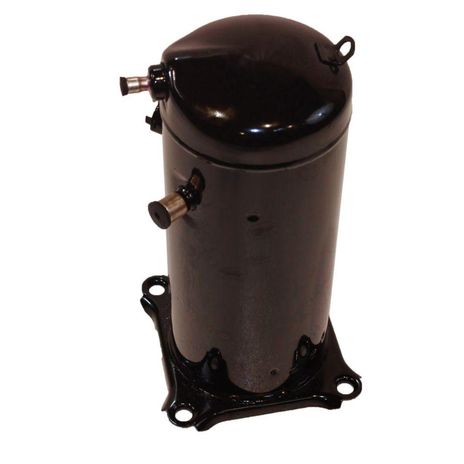

Carrier ZR57K3E-PFV-830
SKU: CS5467051MPN: ZR57K3E-PFV-830
Copeland Scroll Compressor 208/230v 1ph R22 32.1 Rla 58000 Capacity
Contact us for pricing and availability
Product Details
ZR57K3E-PFV-830 is an official OEM Copeland Scroll Compressor 208/230v 1ph R22 32.1 Rla 58000 Capacity for Carrier HVAC equipment
Attributes
| Amps | 32.1 |
| Phase | Single |
| Voltage | 208-230 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 56,200 |
| Protection | Internal Inherent Protection |
| Cycle/Hertz | 60 Hz |
| Refrigerant | R-134a; R-22; R-407C |
| Displacement | 4.71 (in^3/Rev) |
| Compressor Type | Scroll |
| Sound Level (dBA) | 74 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 85°F to 115°F (29.44°C to 46.11°C) |
| Mass Flow (lbs/hr) | 802 lbs./hr.; 827 lbs./hr. |
| Mounting Dimensions | 7.5” x 7.5” x 18” |
| Rated Load Amps (RLA) | 32.1 |
| Substantial Commodity | Steel |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Size (OD) | ⅞” |
| Evaporating Temperature | 45°F (7.22°C) |
| Locked Rotor Amps (LRA) | 148 |
| Oil Charge Initial (oz.) | 56 |
| Discharge Connection Type | Stub |
| Suction Line Fitting Type | Stub |
| Discharge Connection Size (OD) | ½” |
Specifications
| SKU | CS5467051 |
|---|---|
| MPN | ZR57K3E-PFV-830 |
