Carrier ZR21K5E-PFV-830

Name: Carrier ZR21K5E-PFV-830
Brand: Carrier
SKU: CS4231117
Price: 1874.37 USD
Availability: OutOfStock

SKU: CS4231117MPN: ZR21K5E-PFV-830Alternate Part #: CAR-ZR21K5E-PFV-830

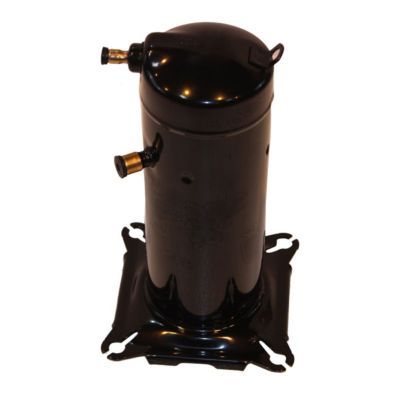

Factory Authorized Parts™ - ZR21K5E-PFV-830 Copeland Scroll Compressor 208/230-1-60 R22 12 RLA 21000 BTU

$1,874.37

Unit

Available on backorder

Quantity

remove

add

Product Details

ZR21K5E-PFV-830 is a Copeland branded Scroll Compressor that is single phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU output of 21000 and use R-22 refrigerant.

Attributes

Amps	12
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	21,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	1.77 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	68
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	294 lbs./hr.; 338 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.08”
Rated Load Amps (RLA)	12
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	50°F (10°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	56
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
