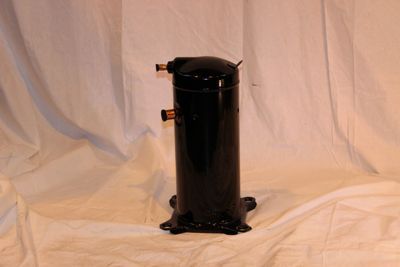

Carrier ZR54K5E-PFV-830

Name: Carrier ZR54K5E-PFV-830
Brand: Carrier
SKU: CS4231132
Price: 2919.59 USD
Availability: OutOfStock

SKU: CS4231132MPN: ZR54K5E-PFV-830Alternate Part #: CAR-ZR54K5E-PFV-830

Factory Authorized Parts™ - ZR54K5E-PFV-830 Copeland Scroll Compressor 208/230V 1Ph, R22, 28.2 RLA, 53500 Capacity

$2,919.59

Unit

Available on backorder

Quantity

remove

add

Documents

Carrier ZR32K5E PFV 830, ZR38K5E PFV 830, ZR48K5E PFV 830, ZR54K5E PFV 830 Data Sheet

Product Details

ZR54K5E-PFV-830 is a Copeland Scroll™ Compressor that is single phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU output of 53,500 and use R-22 refrigerant.

Attributes

Amps	28.2
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	53,500
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	4.40 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	70
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	729 lbs./hr. to 855 lbs./hr.
Mounting Dimensions	7.5” X 7.5”
Rated Load Amps (RLA)	28.2
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F to 70°F (18.33°C to 21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	146
Oil Charge Initial (oz.)	42 oz.
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
