Carrier ZP83KCE-TFD-830

Name: Carrier ZP83KCE-TFD-830
Brand: Carrier
SKU: CS5467032
Price: 3597.63 USD
Availability: OutOfStock

SKU: CS5467032MPN: ZP83KCE-TFD-830

Scroll Compressor

$3,597.63

Unit

Available on backorder

Quantity

remove

add

Product Details

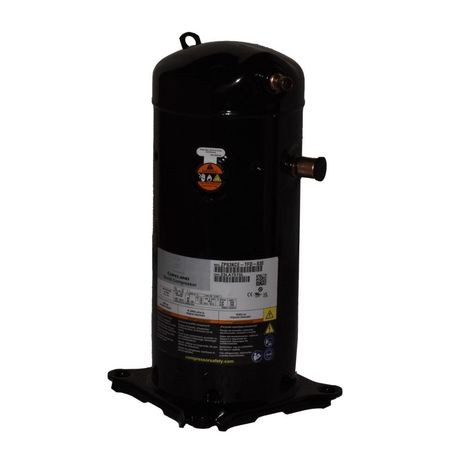

ZP83KCE-TFD-830 is an official OEM Scroll Compressor for Carrier HVAC equipment

Amps	13.6
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	83,000
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A; R-410B
Displacement	4.71 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	75
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	1220 lbs./hr.; 1250 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 18.16”
Rated Load Amps (RLA)	12.2
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	100
Oil Charge Initial (oz.)	60
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
