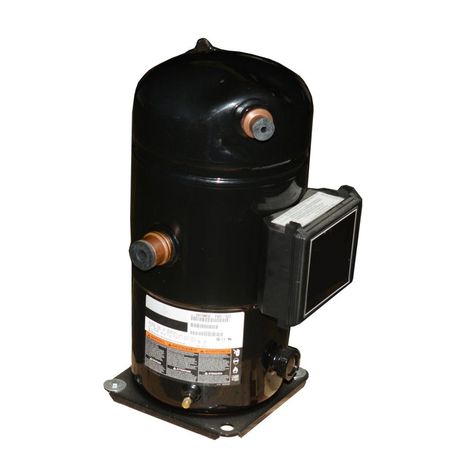

Carrier ZR19M3E-TW5-922
SKU: CS5792470MPN: ZR19M3E-TW5-922
COMPRESSOR
Contact us for pricing and availability
Product Details
COMPRESSOR
Attributes
| Amps | 35.95 |
| Phase | Three |
| Voltage | 200-220/200-230 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 190,000 |
| Protection | External Electronic Protection |
| Cycle/Hertz | 50/60 Hz |
| Refrigerant | R-134a; R-22; R-407C |
| Displacement | 15.00 (in^3/Rev) |
| Compressor Type | Scroll |
| Sound Level (dBA) | 83 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 85°F to 115°F (29.44°C to 46.11°C) |
| Mass Flow (lbs/hr) | 2270 lbs./hr.; 2690 lbs./hr. |
| Mounting Dimensions | 8.65” x 8.65” x 23.47” |
| Rated Load Amps (RLA) | 49.4 |
| Substantial Commodity | Steel |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Size (OD) | 2 ¼” |
| Evaporating Temperature | 45°F (7.22°C) |
| Locked Rotor Amps (LRA) | 425 |
| Oil Charge Initial (oz.) | 140 oz. |
| Discharge Connection Type | Rotolock |
| Suction Line Fitting Type | Rotolock |
| Discharge Connection Size (OD) | 1 ¾” |
Specifications
| SKU | CS5792470 |
|---|---|
| MPN | ZR19M3E-TW5-922 |
You may also like

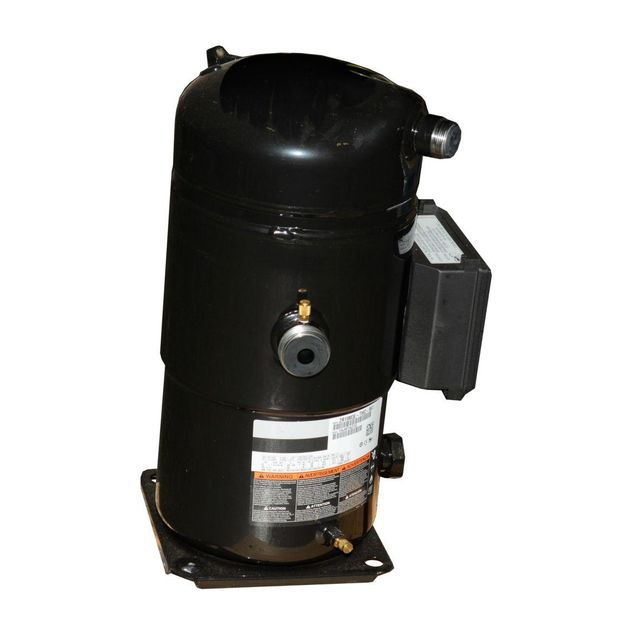

Carrier ZR19M3E-TWC-961
