Carrier ZPS49K5E-PFV-830

Name: Carrier ZPS49K5E-PFV-830
Brand: Carrier
SKU: CS5467043
Price: 1997.78 USD
Availability: OutOfStock

SKU: CS5467043MPN: ZPS49K5E-PFV-830

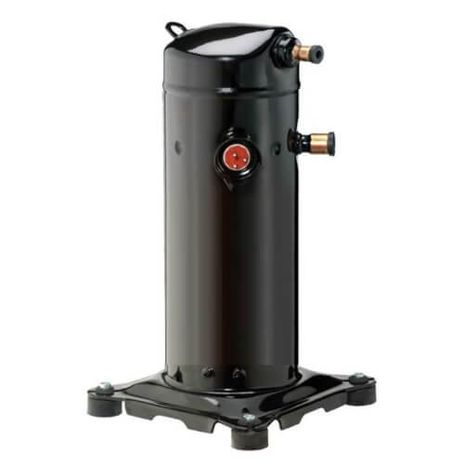

45.4K to 60.5K BTUH Copeland Scroll™ Ultratech™ Two-Stage Compressor For R-410A Refrigerant

Product Details

ZPS49K5E-PFV-830 is an official OEM 45.4K to 60.5K BTUH Copeland Scroll™ Ultratech™ Two-Stage Compressor For R-410A Refrigerant for Carrier HVAC equipment

Attributes

Amps	17.8
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	49,100
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	2.82 (in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	70
Compressor Housing	Hermetic
Liquid Temperature	100°F to 115°F (37.78°C to 46.11°C)
Mass Flow (lbs/hr)	723 lbs./hr.; 806 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	26.9
Substantial Commodity	Steel
Condensing Temperature	115°F to 130°F (46.11°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	50°F (10°C)
Locked Rotor Amps (LRA)	152.9
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
