Carrier ZPS21K5E-PFV-830

Name: Carrier ZPS21K5E-PFV-830
Brand: Carrier
SKU: CS4231092
Price: 1407.46 USD
Availability: OutOfStock

SKU: CS4231092MPN: ZPS21K5E-PFV-830Alternate Part #: CAR-ZPS21K5E-PFV-830

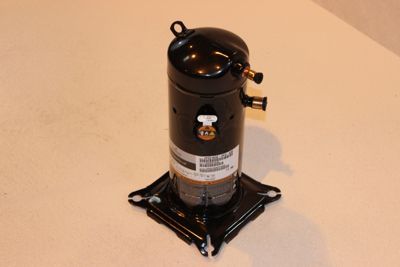

Factory Authorized Parts™ - ZPS21K5E-PFV-830 Copeland Scroll™ UltraTech™ Two-Stage Compressor

Product Details

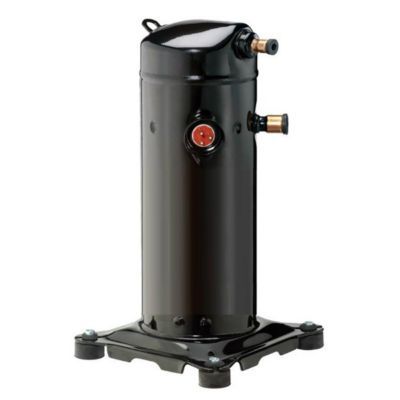

ZPS21K5E-PFV-830 Copeland Scroll™ UltraTech™ Two-Stage Compressor for R-410a Refrigerant

Amps	7.8
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	21,300
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	1.27 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	66
Compressor Housing	Hermetic
Liquid Temperature	100°F to 115°F (37.78°C to 46.11°C)
Mass Flow (lbs/hr)	314 lbs./hr.; 352 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.03”
Rated Load Amps (RLA)	11.1
Substantial Commodity	Steel
Condensing Temperature	115°F to 130°F (46.11°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	58.3
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
