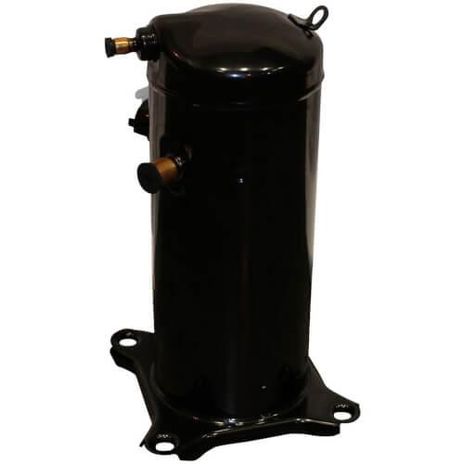

Carrier ZP28K5E-PFV-830

Name: Carrier ZP28K5E-PFV-830
Brand: Carrier
SKU: CS5786627
Price: 1166.35 USD
Availability: OutOfStock

SKU: CS5786627MPN: ZP28K5E-PFV-830

27,900 BTUh Copeland Scroll Compressor R-410a

Product Details

ZP28K5E-PFV-830 is an official OEM 27,900 BTUh Copeland Scroll Compressor R-410a for Carrier HVAC equipment

Amps	17.9
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	27,900
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	1.63 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	68
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	411 lbs./hr.; 468 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.02”
Rated Load Amps (RLA)	17.9
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	77
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
