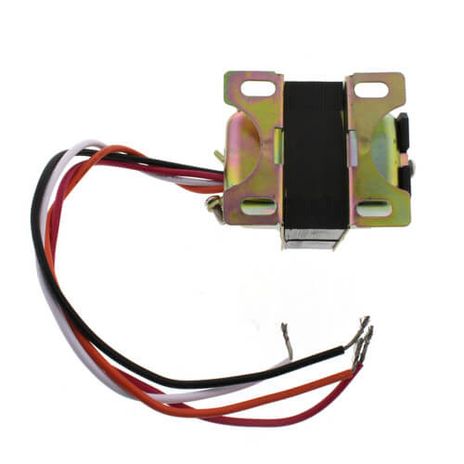

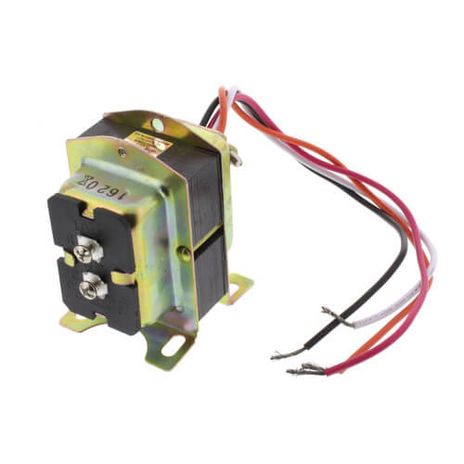

Resideo AT120A1004

Foot Mounted Transformer with 9 in. Leadwires

Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.

Features

• Rated at 20 VA.
• Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed ¼ inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
• Meet NEC Class 2 requirements.
• Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.

Specifications

• Description: Foot mounted 120/208/240 Vac Transformer with 9 in. lead wires
• Electrical Ratings-Primary: 120 Vac, 208 Vac, 240 Vac
• Electrical Ratings-Secondary: 27 V.O.C.
• Frequency: 60 Hz

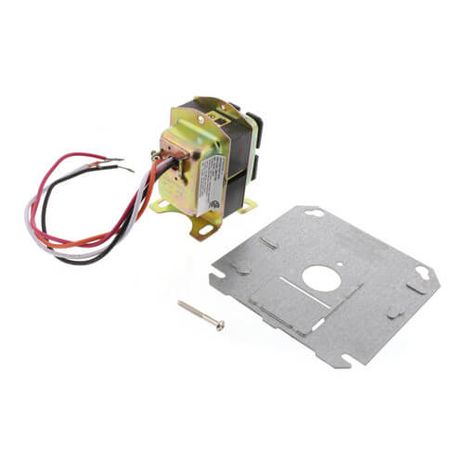

• Mounting: Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
• NEMA Rating: No
• Electrical Connections (Primary)(in.): 9” Lead Wires
• Electrical Connections (Secondary)(in.): (2) Screw Terminals
• Electrical Ratings: 24 Vac at 20 VA
• Dimensions: 2-⅞ in. high x 1-⅞ in. wide x 2-15/16 in. deep
• Temperature Ratings: -20 F to +105 F
