Eaton 1450E-6507
SKU: CS5019151MPN: 1450E-6507UPC/EAN: 782116111091
Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details

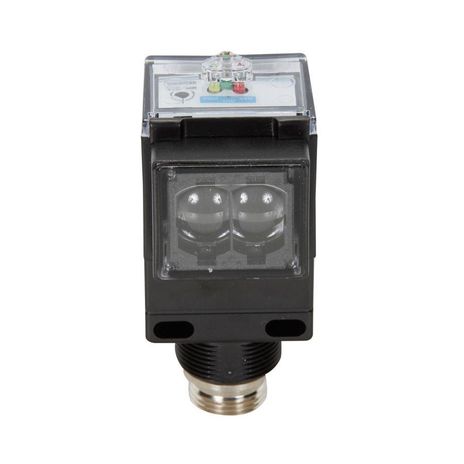

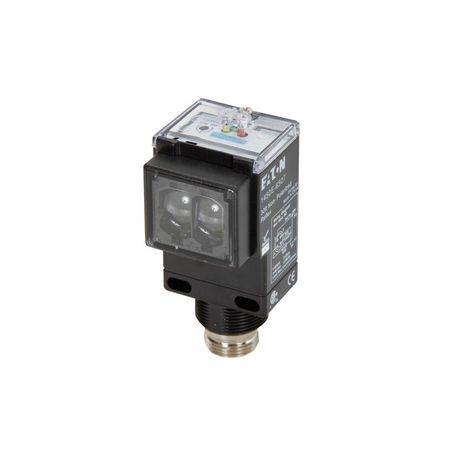

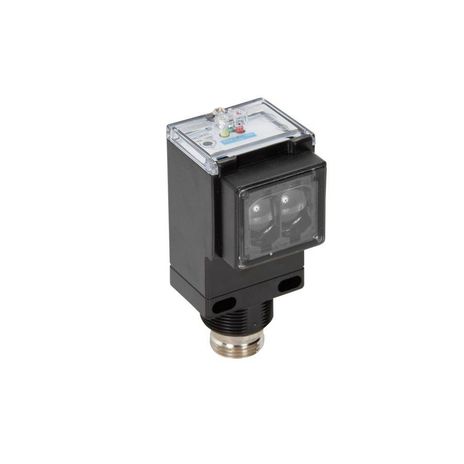

Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Sensor dist. 30 Ft, Max DC 250 mA at 40 Vdc, NPN/PNP Open Collector, 4 Pin Mini Connect, 10-40 Vdc input, Reverse polarity, short circuit/overload, Non Polarized Retroreflective
Attributes
| Connection | 4-pin mini connector |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 250 mA at 40 Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 10-40 Vdc |
| Led Indicator | Output status: green Power on: yellow Marginal gain: red |
| Maximum Dc Current | 250 mA |
| Operating Mode | Non polarized retroreflective |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit protected |
| Sensor Type | Retroreflective |
| Switch Type | Photoelectric |
Specifications
| SKU | CS5019151 |
|---|---|
| MPN | 1450E-6507 |
| UPC/EAN | 782116111091 |
