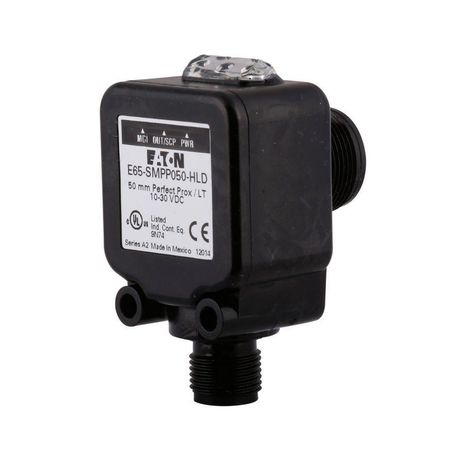

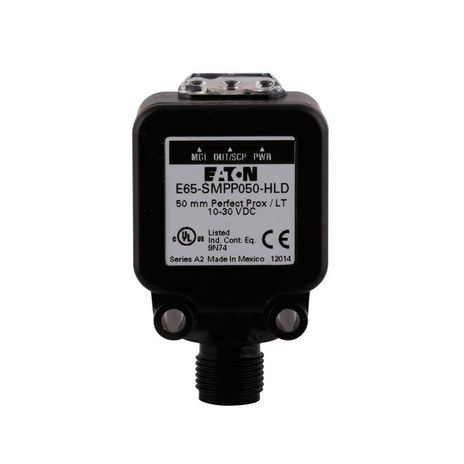

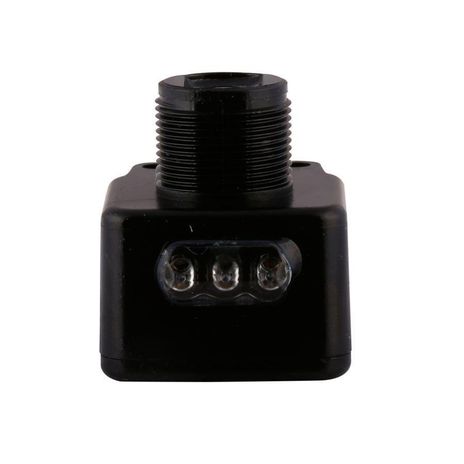

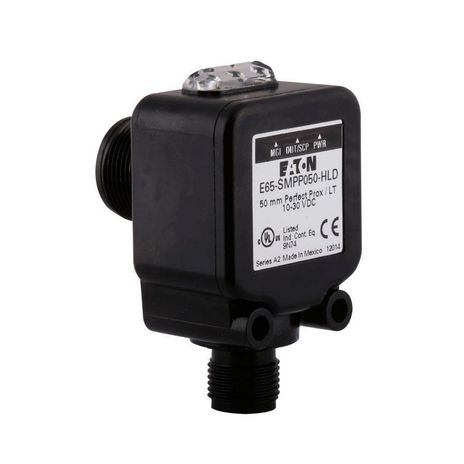

Eaton E65-SMPP050-HLD
SKU: CS4873736MPN: E65-SMPP050-HLDUPC/EAN: 782114786468
Eaton E65 SM compact photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton SM Series Rectangular Body Photoelectric Sensor, Right Angle, Sensor dist 2 In., 100 mA max DC, NPN and PNP Open Collector, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input, Background Suppression
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin dual key micro connector |
| Contact Configuration | DC: NPN open collector AC: L1 switched |
| Contact Rating | 200 mA DC NPN / 200 mA AC 3 - Wire |
| Enclosure Material | Cable jacket: PVC Lens: polycarbonate Body: cycoloy |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K |
| Input Voltage | 18-264 Vac, 18-50 Vdc |
| Led Indicator | Power on: green Marginal gain: orange Output status: red |
| Maximum Ac Current | 200 mA |
| Maximum Dc Current | 200 mA |
| Operating Mode | Background suppression |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Sensor Type | Back ground suppression |
| Switch Type | Photoelectric |
Specifications
| SKU | CS4873736 |
|---|---|
| MPN | E65-SMPP050-HLD |
| UPC/EAN | 782114786468 |
You may also like
Eaton E65-SMPP050-GDD
Contact us for pricing and availabilityEaton E65-SMPP050-GLD
Contact us for pricing and availability

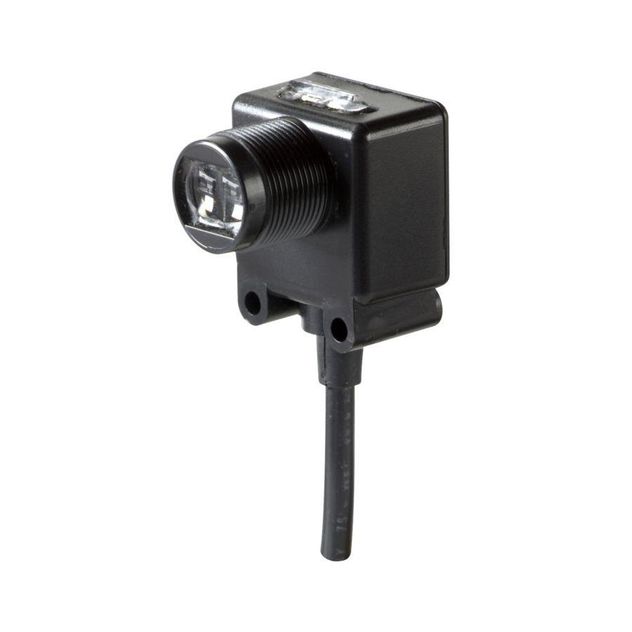

Eaton E65-SMPP050-HL5
