Eaton E65-SMPP050-HDD
SKU: CS4873734MPN: E65-SMPP050-HDDUPC/EAN: 782114786475

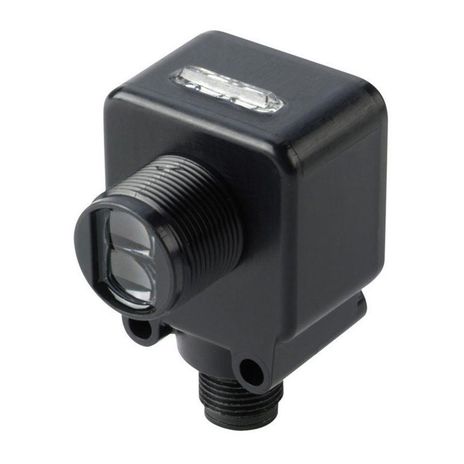

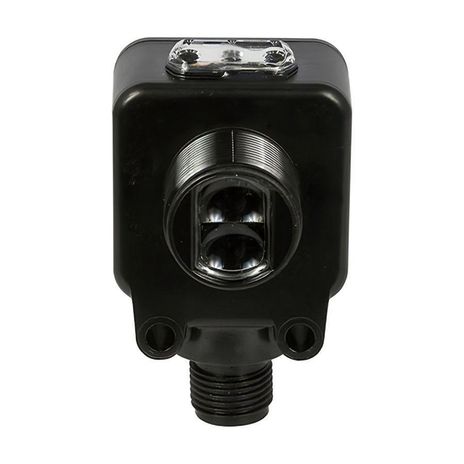

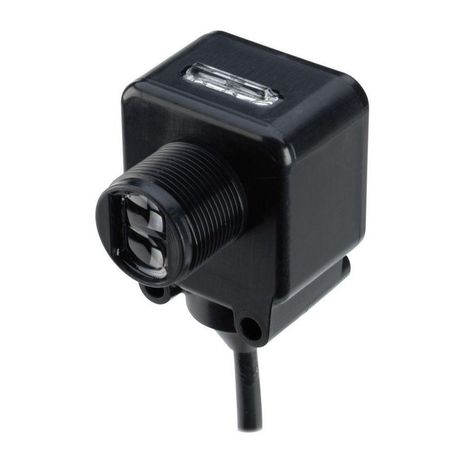

Eaton E65 SM compact photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton SM Series Rectangular Body Photoelectric Sensor, Right Angle, Sensor dist: 2 In., 100 mA max DC, NPN and PNP Open Collector, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input, Background Suppression
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin M12 connector |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA at 10-30 Vdc |
| Enclosure Material | Cable jacket: PVC Lens: polycarbonate Body: cycoloy |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K 2 |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output: red Power: green TargetLock: orange |
| Maximum Dc Current | 100 mA |
| Operating Mode | Background suppression |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset short circuit |
| Sensor Type | Back ground suppression |
| Series | E65 |
| Switch Type | Photoelectric |
| Type | Perfect Prox Photoelectric Sensor |
Specifications
| SKU | CS4873734 |
|---|---|
| MPN | E65-SMPP050-HDD |
| UPC/EAN | 782114786475 |
You may also like
Eaton E65-SMPP100-HDD
Contact us for pricing and availability
Eaton E65-SMPP050-HL
$226.01UnitEaton E65-SMPP050-HD
Contact us for pricing and availabilityEaton E65-SMPP050-HLD
Contact us for pricing and availability
Eaton E65-SMPP050-HL5
$230.46UnitEaton E65-SMPR3-HDD
Contact us for pricing and availabilityEaton E65-SMPP050-GL
Contact us for pricing and availabilityEaton E65-SMTD15-HDD
Contact us for pricing and availabilityEaton E65-SMSD200-HDD
Contact us for pricing and availabilityEaton E65-SMPP050-GDD
Contact us for pricing and availabilityEaton E65-SMPP050-GLD
Contact us for pricing and availability

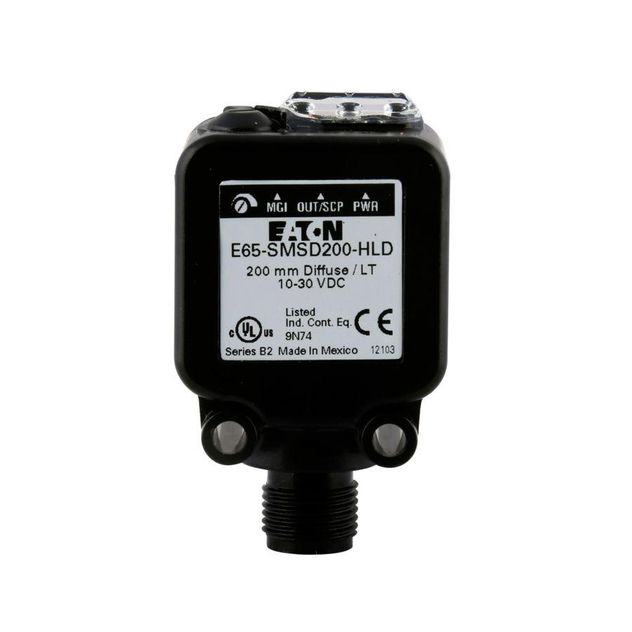

Eaton E65-SMSDS0110
