Eaton ECS702SC

Name: Eaton ECS702SC
Brand: Eaton
SKU: CS4859918
Price: 397.39 USD
Availability: OutOfStock

SKU: CS4859918MPN: ECS702SCUPC/EAN: 786685120447

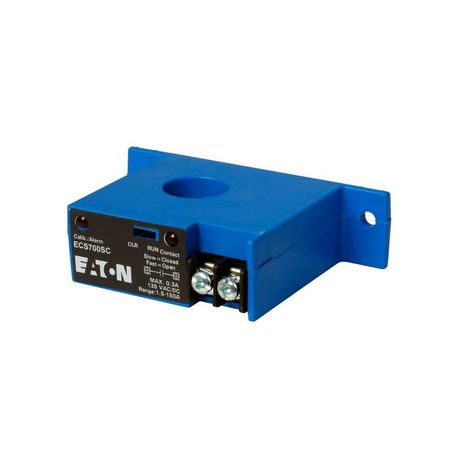

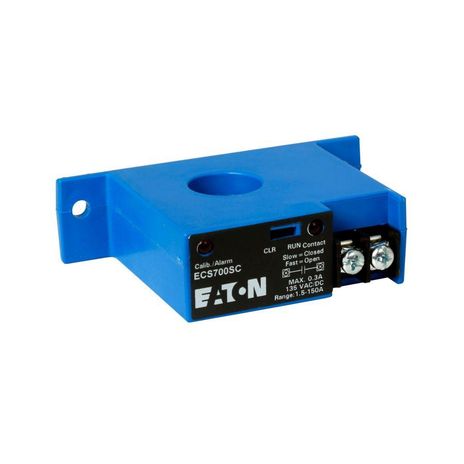

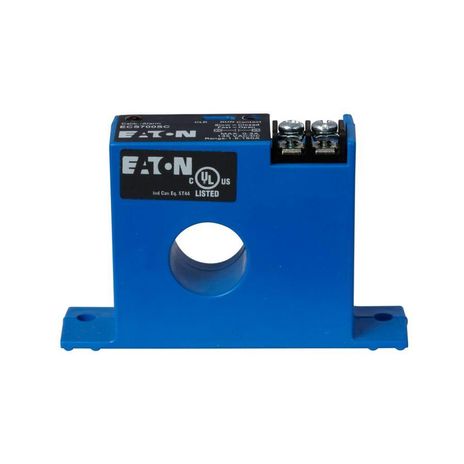

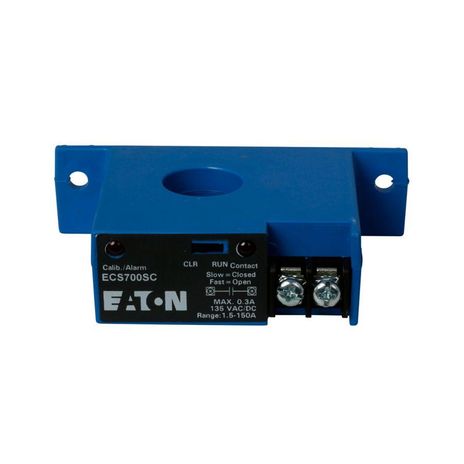

Eaton ECS7 series CurrentWatch AC current switch

Product Details

Eaton CurrentWatch Series Current Switch, Current Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 150A, Switch up to 0.3A max AC, Switch up to 0.3A max DC, Isolated Solid State Relay, 0.3A at 135 Vac/DC

Attributes

Ac Current Max	150 A monitor, 0.3 A switch
Connection	Screw terminal
Contact Configuration	Isolated solid state relay
Contact Rating	0.3A at 135 Vac/DC
Enclosure Material	UL94 V0 flammability rated plastic
Led Indicator	Contact and calibration status
Operating Temperature	-58° to 122°F (-50° to 50°C)
Switch Type	Current switch
