Square D XT112S1PCM12

Name: Square D XT112S1PCM12
Brand: Square D
SKU: CS4814130
Availability: OutOfStock

SKU: CS4814130MPN: XT112S1PCM12

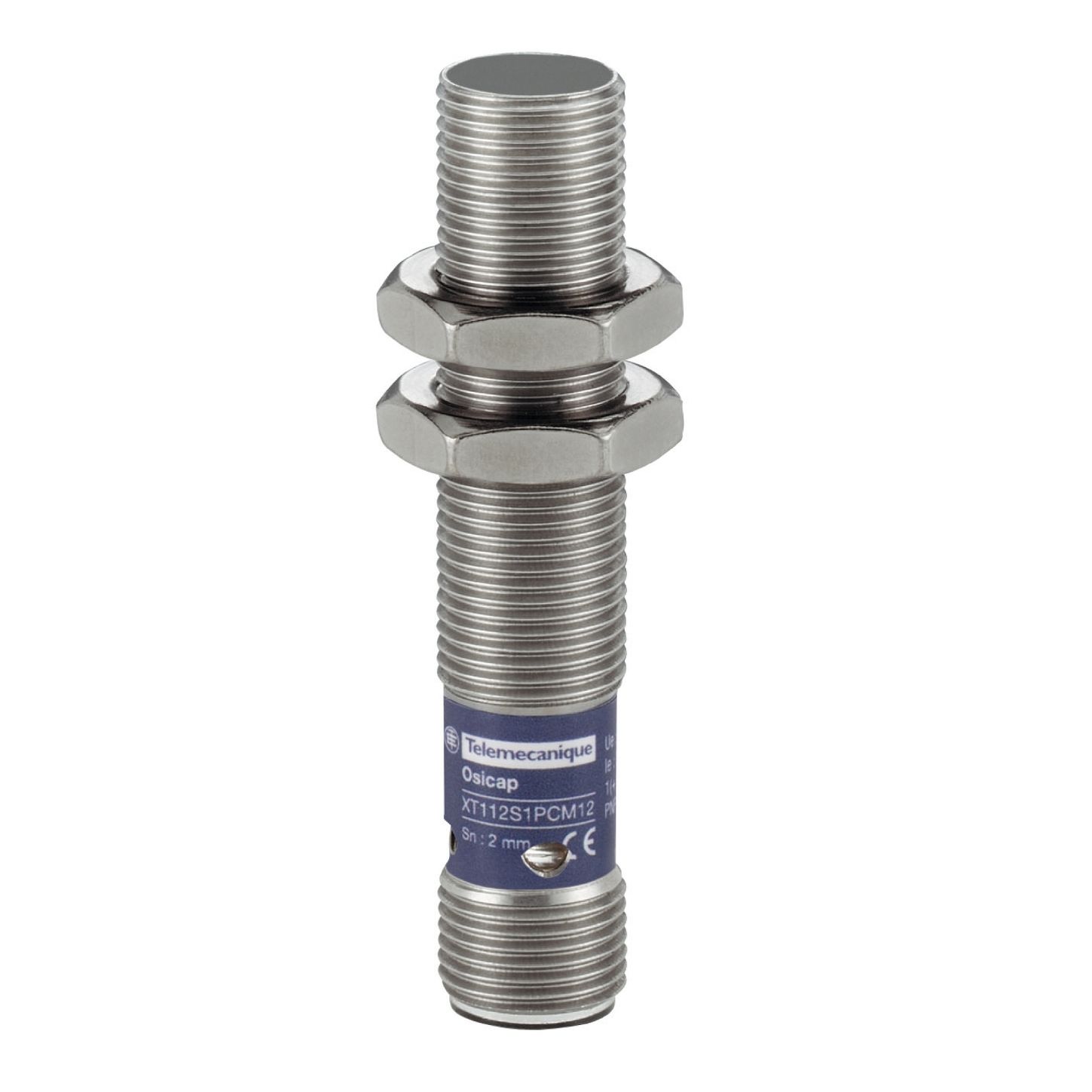

Telemecanique Capacitive proximity sensors XT, cylindrical M12, stainless steel, Sn 2 mm, 24 V DC

Product Details

Telemecanique Capacitive proximity sensors XT, cylindrical M12, stainless steel, Sn 2 mm, 24 V DC

Adjustment Zone	0.5-5 mm
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Body Type	fixed
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Differential Travel	< 0.2 x Sr
Discrete Output Function	1 NC + 1 NO
Discrete Output Type	PNP
Enclosure Material	stainless steel 303
Iso Thread	M12 x 1
Marking	CE
Marking 1	CE
Material	stainless steel
Maximum Delay First Up	30 ms
Maximum Delay Recovery	5 ms
Maximum Delay Response	5 ms
Maximum Switching Current	200 mA
Output Circuit Type	DC
Product Certifications	cETLus
Product Specific Application	detection of insulated or conductive materials
Protection Type	short-circuit protection
Range Of Product	Telemecanique Capacitive proximity sensors XT
Repeat Accuracy	< 0.1 x Sr
Repeat Accuracy 1	< 0.1 x Sr
Sensor Design	cylindrical M12
Sensor Name	XT1
Sensor Type	capacitive proximity sensor
Setting Up	sensitivity by potentiometer
Size	51 mm
Standards	EN/IEC 60947-5-2
Type Of Output Signal	discrete
Wiring Technique	4-wire
