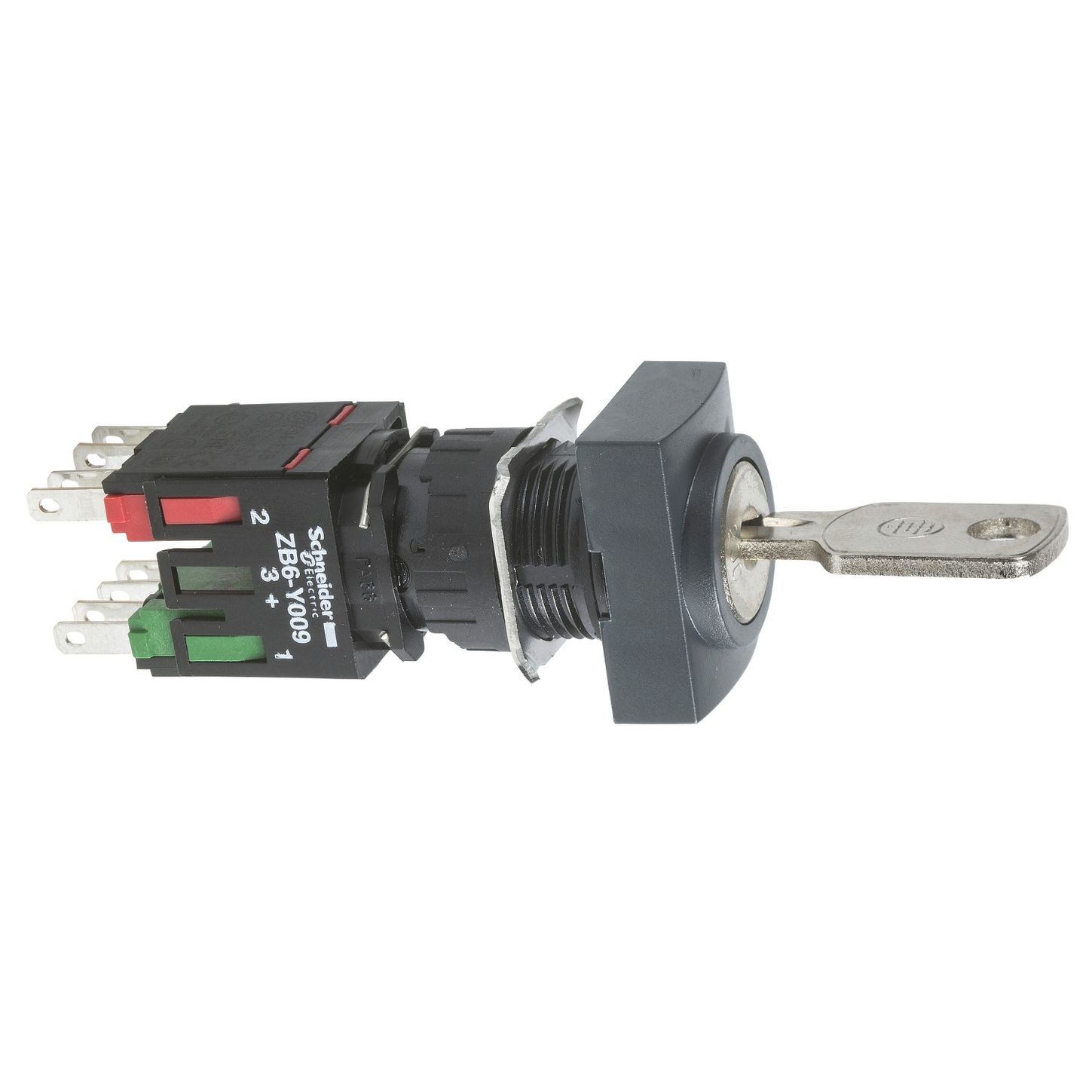

Square D XB6DGC5B

Name: Square D XB6DGC5B
Brand: Square D
SKU: CS4814003
Price: 66.39 USD
Availability: OutOfStock

SKU: CS4814003MPN: XB6DGC5B

Selector switch, Harmony XB6, black rectangular, 16mm, 2 positions, stay put, 1NO + 1NC, key 200

$66.40

Unit

Available on backorder

Quantity

remove

add

Product Details

Black complete rectang selector switch Ø16 2-position stay put 1NO+1NC Ronis 200

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	plastic
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Device Short Name	XB6
Key Withdrawal Position	in any position
Mechanical Durability	200000 cycles
Mounting Diameter	16 mm
Operating Position	any position
Operator Position Information	2 positions 70°
Product Certifications	CCC# #UL# #CSA# #GOST
Product Or Component Type	complete selector switch
Protective Treatment	TC
Range Of Product	Harmony XB6
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	rectangular
Standards	EN/IEC 60947-5-1# #CSA C22.2 No 14# #JIS C 852# #UL 508# #EN/IEC 60947-1# #EN/IEC 60947-5-5# #JIS C8201-5-1# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
Type Of Keylock	Ronis 200
