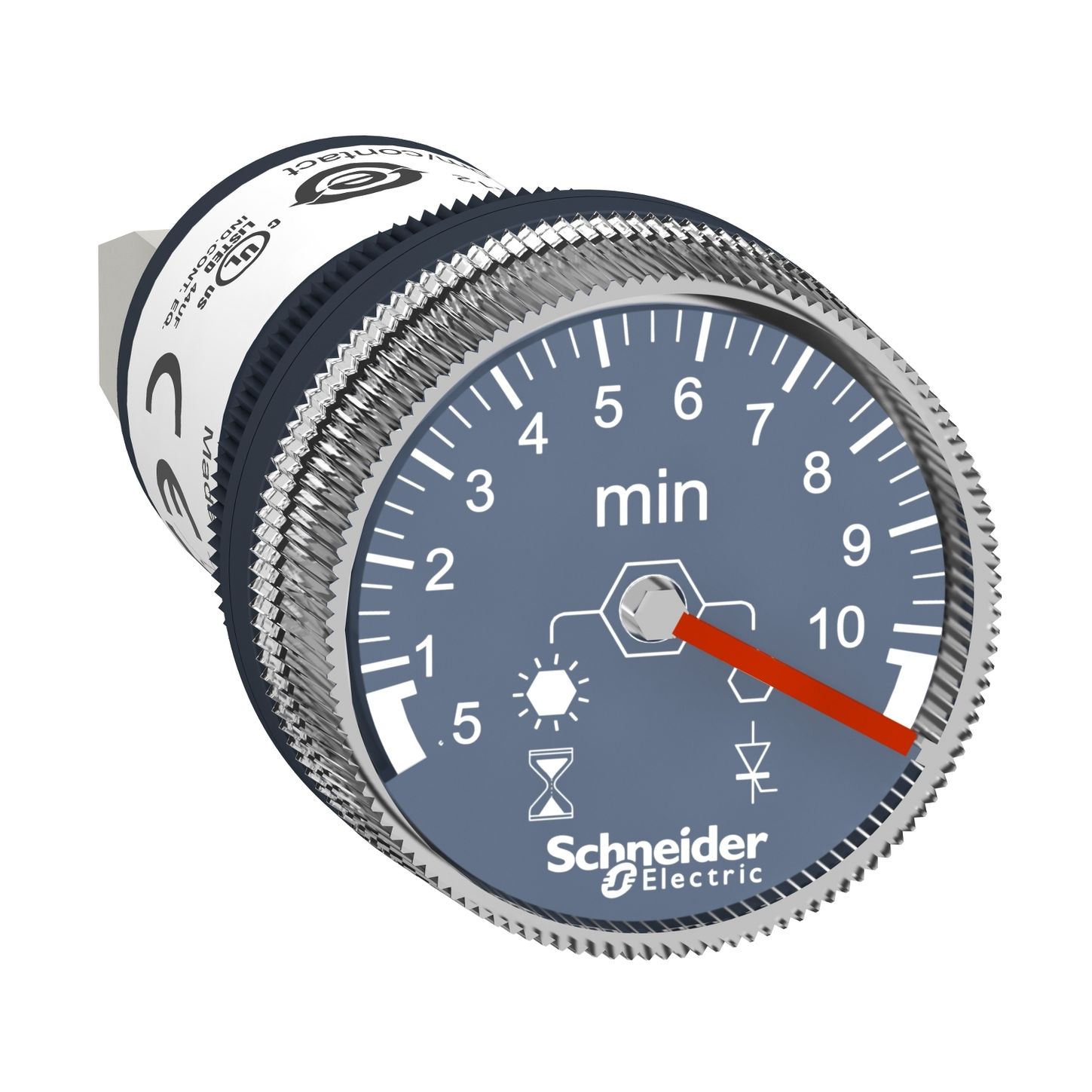

Square D XB5DTGM4

Name: Square D XB5DTGM4
Brand: Square D
SKU: CS4813990
Availability: OutOfStock

SKU: CS4813990MPN: XB5DTGM4

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10min, 100...240V AC DC

Product Details

Panel mounted timer monofunction, plastic, Dia 22, time delay 0.5...10 min, 100…240 V AC/DC

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-20-80 °C
Bezel Material	plastic
Device Presentation	monolithic product
Diameter	29 mm
Fixing Collar Material	plastic
Maximum Residual Current	5 mA
Maximum Voltage Drop	5 V
Minimum Switching Current	10 mA
Mounting Diameter	22 mm
Output Short Circuit Protection	with
Product Certifications	UL listed# #CE
Product Or Component Type	timer
Protection Type	overvoltage protection
Range Of Product	Harmony XB5
Repeat Accuracy	± 0.5 %
Repeat Accuracy 1	± 0.5 %
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	UL 508# #EN/IEC 61812-1
Temperature Drift	± 0.05 %/°C
Thickness	1-6 mm
Thickness 1	1-6 mm
Time Delay Range	0.5…10 min
Time Delay Type	A
Time Delay Type 1	A
Voltage Drift	± 0.2 %/V
