Schneider Electric XB5DTB25

Name: Schneider Electric XB5DTB25
Brand: Schneider Electric
SKU: CS3639556
Availability: OutOfStock

SKU: CS3639556MPN: XB5DTB25Alternate Part #: SENA-XB5DTB25

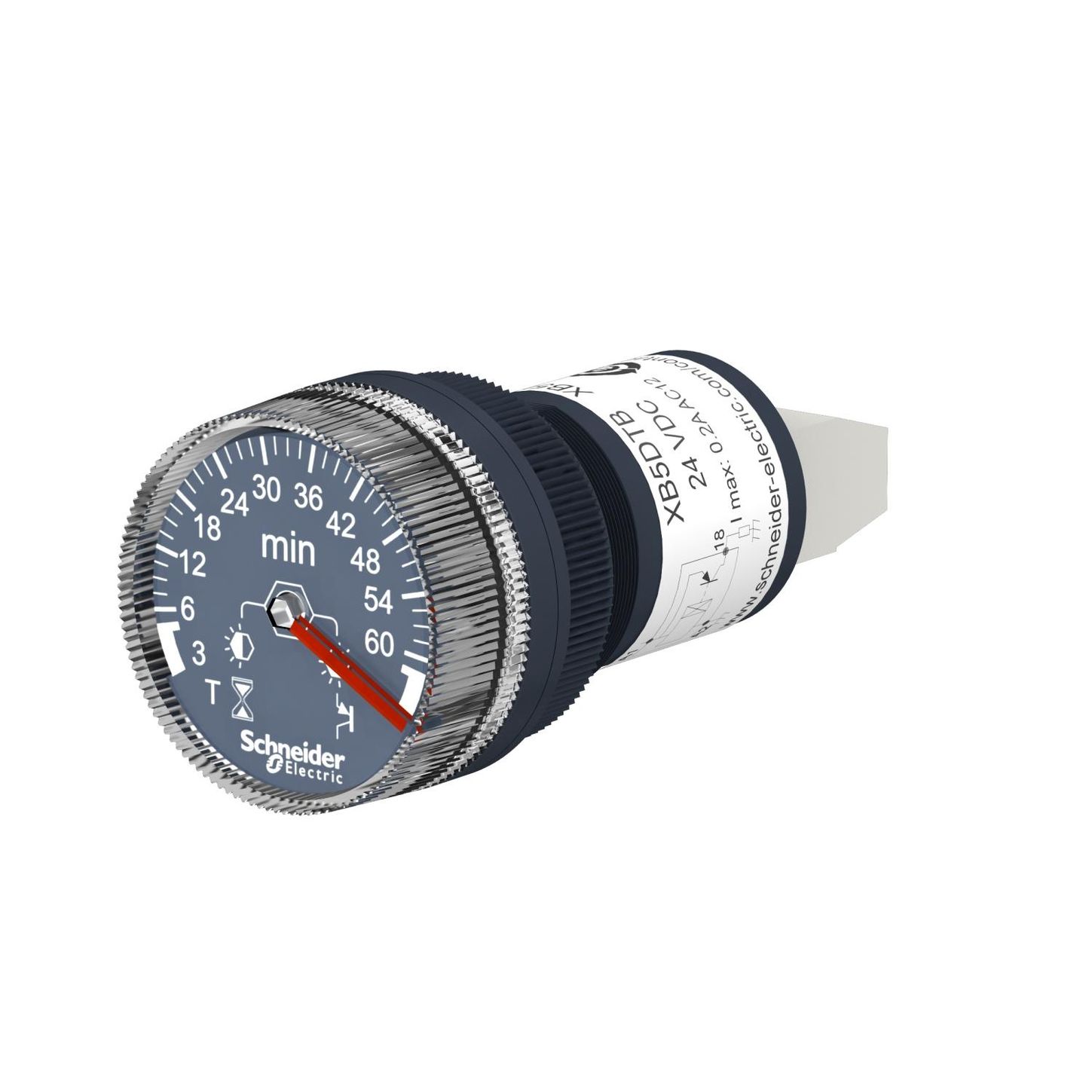

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 24V DC

Product Details

DOOR-MNTD TIMER 3M 60M 24VDC

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-20-80 °C
Bezel Material	plastic
Device Presentation	monolithic product
Diameter	29 mm
Fixing Collar Material	plastic
Maximum Residual Current	0.1 mA
Maximum Voltage Drop	3 V
Minimum Switching Current	10 mA
Mounting Diameter	22 mm
Output Short Circuit Protection	with
Output Type	open collector PNP
Product Certifications	UL listed# #CE
Product Or Component Type	timer
Protection Type	reverse polarity protection# #overvoltage protection
Range Of Product	Harmony XB5
Repeat Accuracy	± 0.5 %
Repeat Accuracy 1	± 0.5 %
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	UL 508# #EN/IEC 61812-1
Temperature Drift	± 0.05 %/°C
Thickness	1-6 mm
Thickness 1	1-6 mm
Time Delay Range	3…60 min
Time Delay Type	A
Time Delay Type 1	A
Voltage Drift	± 0.2 %/V
