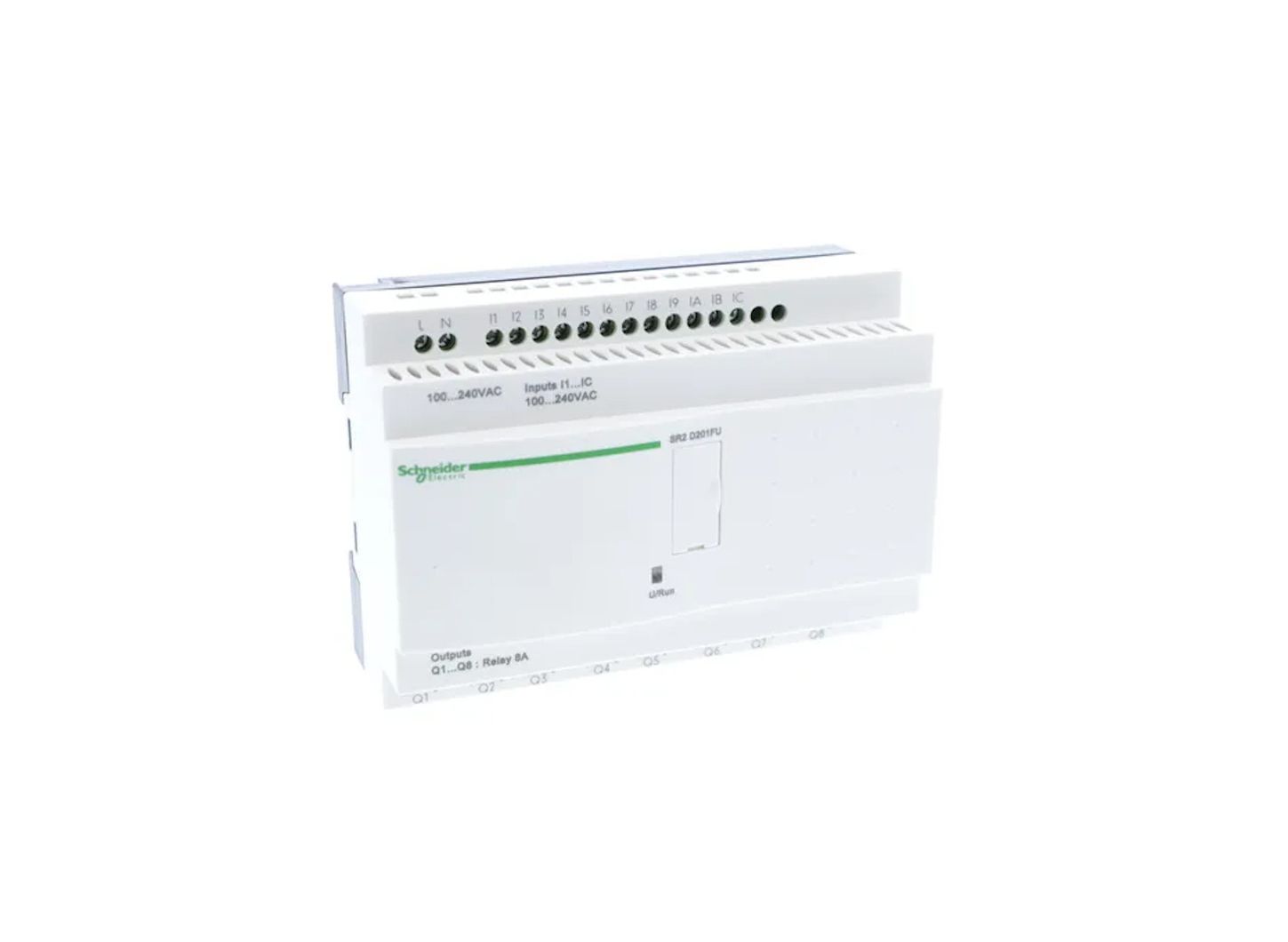

Square D SR2D201FU

compact smart relay, Zelio Logic SR2 SR3, 20 IO, 100 to 240V AC, no clock, no display

Compact smart relay, Zelio Logic, 20 I O, 100...240 V AC, no clock, no display

• Range of product : Zelio Logic
• Product or component type : Compact smart relay
• Local display : Without
• Number or control scheme line : 240 with ladder programming
• Cycle time : 6…90 ms
• Backup time : 10 years at 25 °C
• Clock drift : 12 min/year at 0…55 °C, 6 s/month at 25 °C
• Checks : Program memory on each power up
• Rated supply voltage : 100...240 V AC
• Supply voltage limits : 85…264 V
• Supply frequency : 50/60 Hz
• Maximum supply current : 100 mA at 100 V (without extension), 50 mA at 240 V (without extension)
• Power consumption in VA : 11 VA without extension
• Isolation voltage : 1780 V
• Protection type : Against inversion of terminals (control instructions not executed)
• Discrete input number : 12
• Discrete input voltage: 100...240 V AC
• Discrete input current : 0.6 mA
• Discrete input frequency : 57...63 Hz, 47...53 Hz
• Number of outputs : 8 relay
• Output voltage limits : 5...30 V DC (relay output), 24...250 V AC
