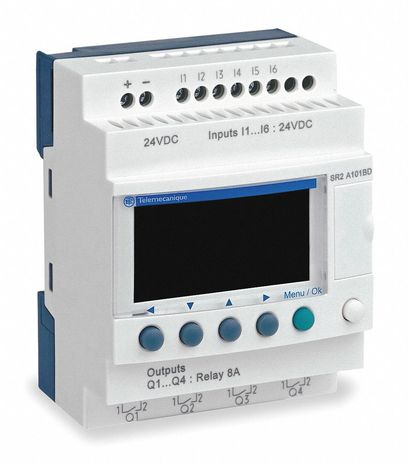

Square D SR2A101FU

Name: Square D SR2A101FU
Brand: Square D
SKU: CS366420
Availability: OutOfStock

SKU: CS366420MPN: SR2A101FU

compact smart relay, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC, no clock, display

Product Details

Zelio Logic Compact Smart Relay

Local Display: With* Number or Control Scheme Lines: 0-240 with ladder programming* Cycle Time: 6-90ms* Backup Time: 10 years at 35 deg. C* Rated Supply Voltage: 100-240V AC 50/60 Hz* Clock: Without* Local Display: With* Degree or Protection: IP20 (terminal block)IP40 (front panel) conforming to IEC 60529

Ambient Air Temperature For Storage	-40-70 °C
Checks	program memory on each power up
Clock	without
Cycle Time	6-90 ms
Discrete Input Current	0.6 mA
Discrete Input Current 1	0.6 mA
Discrete Input Frequency	47…53 Hz# #57…63 Hz
Isolation Voltage	1780 V
Local Display	with
Maximum Altitude Transport	3048 m
Operating Altitude	2000 m
Product Certifications	C-Tick# #CSA# #GL# #UL# #GOST
Product Or Component Type	compact smart relay
Protection Type	against inversion of terminals (control instructions not executed)
Range Of Product	Zelio Logic
Standards	EN/IEC 61000-4-6 level 3# #EN/IEC 61000-4-11# #EN/IEC 61000-4-3# #EN/IEC 61000-4-12# #EN/IEC 61000-4-4 level 3# #EN/IEC 61000-4-5# #EN/IEC 60068-2-6 Fc# #EN/IEC 61000-4-2 level 3# #EN/IEC 60068-2-27 Ea
Supply Frequency	50/60 Hz
Supply Voltage Limits	85-264 V
