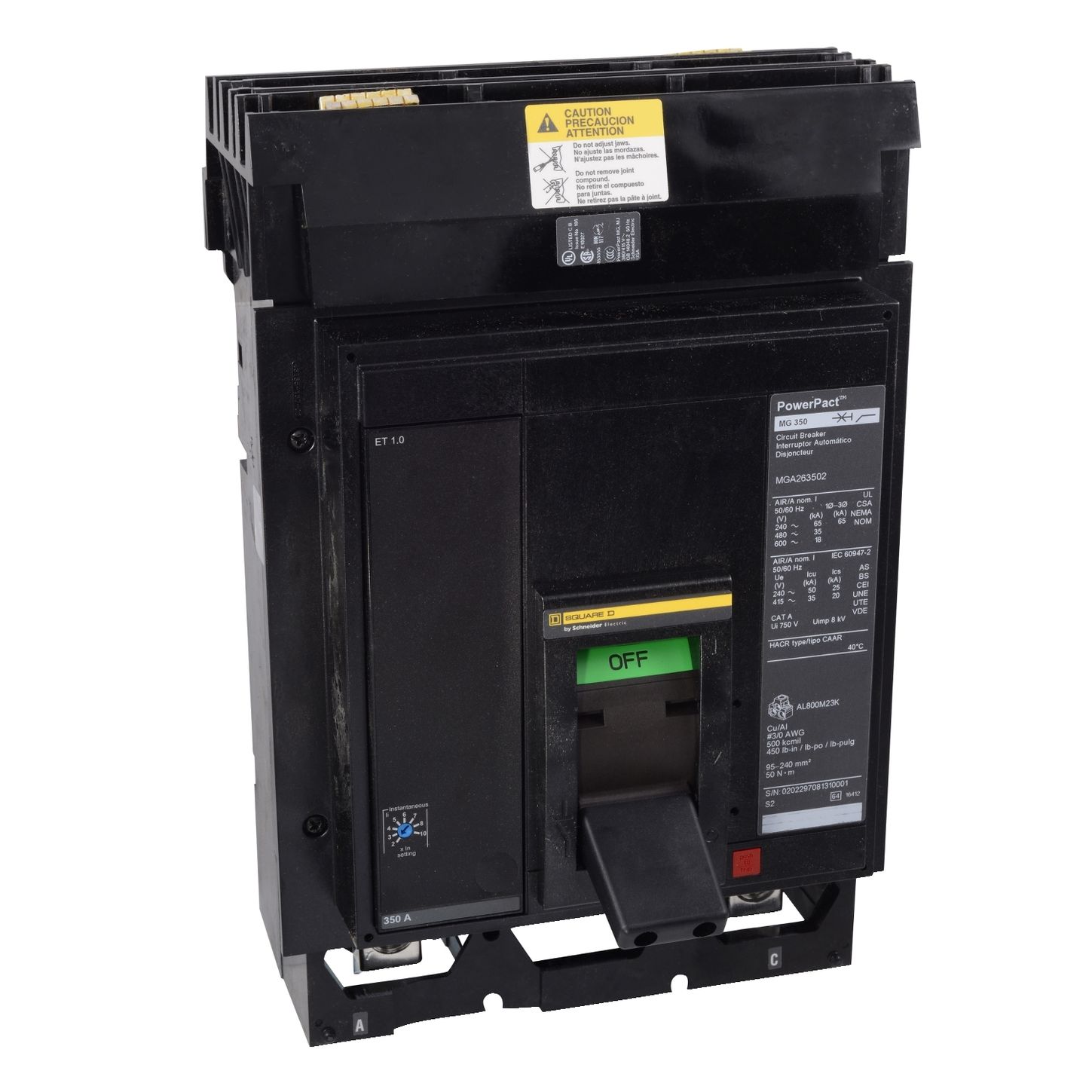

Square D MGA36400

Name: Square D MGA36400
Brand: Square D
SKU: CS4812065
Availability: OutOfStock

SKU: CS4812065MPN: MGA36400UPC/EAN: 785901496144

Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, I-Line, ET 1.0, 80%, ABC

Product Details

PowerPact M - Circuit Breaker, electronic trip, I-Line, 400A, 3 pole, 18 kA@600 VAC, ABC phasing

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	G
Continuous Current Rating	0.80000001192093
Control Type	operating handle
Device Application	distribution
Long Time Pick Up Adjustment Range	300…800 A
Magnetic Tripping Current	800-4000 A
Mounting Support	bracket
Network Frequency	50/60 Hz
Poles Description	3P
Product Name	PowerPact M
Product Or Component Type	circuit breaker
Quality Labels	CE
Quantity Per Set	1
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL800M23K
Trip Unit Name	ET 1.0
Utilisation Category	category A
