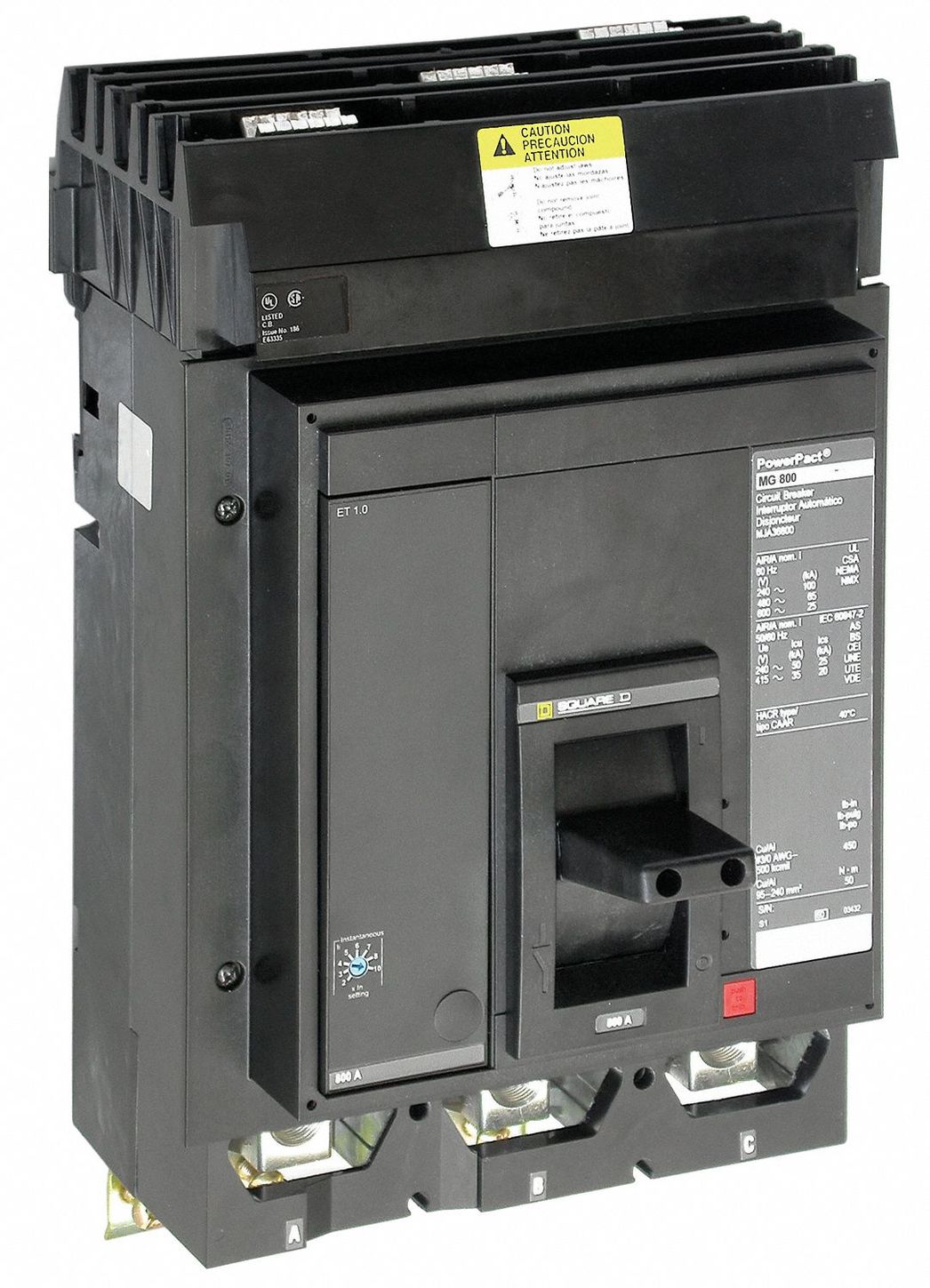

Square D MJA36800

Name: Square D MJA36800
Brand: Square D
SKU: CS1665918
Availability: OutOfStock

SKU: CS1665918MPN: MJA36800UPC/EAN: 785901572701

Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

Product Details

Molded Case Circuit Breaker 800 A Amps AC Voltage Rating 600V AC Max AIR Rating 25kA at 600V AC For Use With I Line Panelboards Series MJ High Amp Trip Setting 8 000 A Low Amp Trip Setting 1 600 A Circuit Breaker Type Standard Number of Poles 3 DC Voltage Rating Not Rated Terminal Connection Box Lug Trip Type Electronic Phase Three Instantaneous Trip Adjustable Phase Connection ABC Frame Size 800A/M Circuit Breaker Mounting Style Panel Mount Height 12.9 in Width 8.3 in

Attributes

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	J
Continuous Current Rating	0.80000001192093
Control Type	operating handle
Device Application	distribution
Long Time Pick Up Adjustment Range	300…800 A
Magnetic Tripping Current	1600-8000 A
Mounting Support	bracket
Network Frequency	50/60 Hz
Poles Description	3P
Product Name	PowerPact M
Product Or Component Type	circuit breaker
Quality Labels	CE
Quantity Per Set	1
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL800M23K
Trip Unit Name	ET 1.0
Utilisation Category	category A
