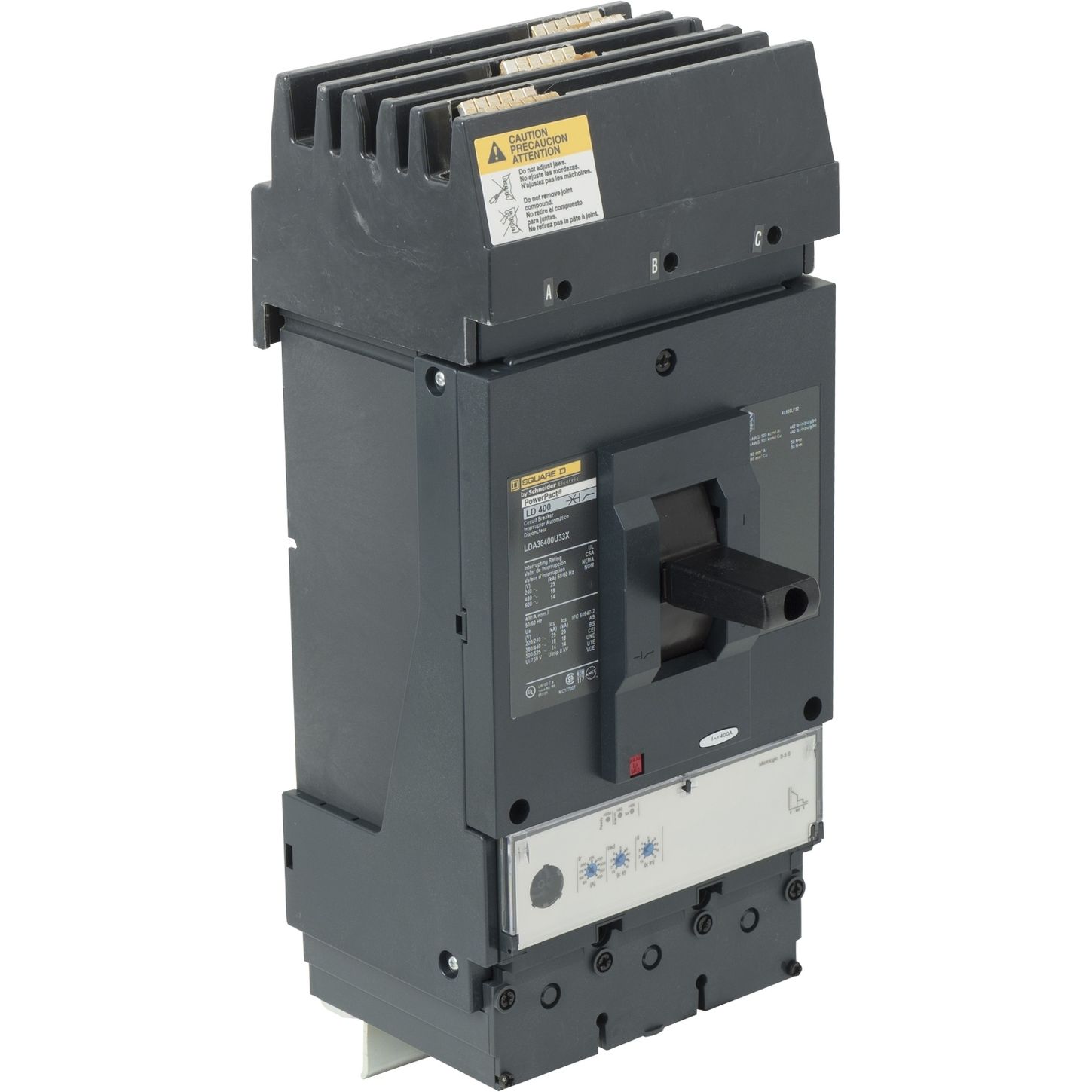

Square D LDA36400U33X

Name: Square D LDA36400U33X
Brand: Square D
SKU: CS4811702
Availability: OutOfStock

SKU: CS4811702MPN: LDA36400U33XUPC/EAN: 785901808985

Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 14kA, I-Line, MicroLogic 3.3S, 80%, ABC

Product Details

Circuit breaker, PowerPact L, I-Line, Micrologic 3.3S, 400A, 3 poles, 600 V, 14 kA, 80% rated,

Ambient Air Temperature For Operation	-2-70 °C
Ambient Air Temperature For Operation 1	-2-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	D
Communication Interface	Modbus# #Ethernet
Continuous Current Rating	0.80000001192093
Control Type	toggle
Device Application	distribution
Device Short Name	L-Frame
Long Time Pick Up Adjustment Range	0.25…1 x In
Mounting Support	bracket
Network Frequency	50/60 Hz
Phase Connection	ABC
Poles Description	3P
Product Name	PowerPact L
Product Or Component Type	circuit breaker
Protection Technology	current limiter
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL600LF52K3
Trip Unit Name	Micrologic 3.3 S
Utilisation Category	category A
