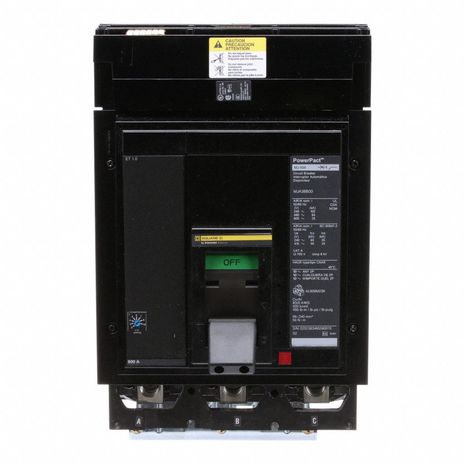

Square D MJA36600

Name: Square D MJA36600
Brand: Square D
SKU: CS1665682
Availability: OutOfStock

SKU: CS1665682MPN: MJA36600UPC/EAN: 785901504757

Circuit breaker, PowerPacT M, 600A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

Product Details

Circuit Breaker, PowerPact M, electronic trip, I-line, 600A, 3 poles, 25 kA, 600 V, ABC phasing

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	J
Continuous Current Rating	0.80000001192093
Control Type	operating handle
Device Application	distribution
Long Time Pick Up Adjustment Range	300…800 A
Magnetic Tripping Current	1200-6000 A
Mounting Support	bracket
Network Frequency	50/60 Hz
Poles Description	3P
Product Name	PowerPact M
Product Or Component Type	circuit breaker
Quality Labels	CE
Quantity Per Set	1
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL800M23K
Trip Unit Name	ET 1.0
Utilisation Category	category A
