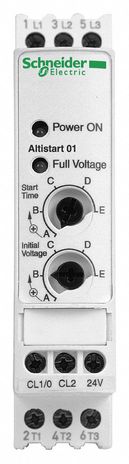

Square D ATS01N103FT

Name: Square D ATS01N103FT
Brand: Square D
SKU: CS4810609
Price: 114.12 USD
Availability: OutOfStock

SKU: CS4810609MPN: ATS01N103FT

soft starter for asynchronous motor, Altistart 01, ATS01, 3A, 110 to 480V, 0.55 to 1.1kW

$114.12

Unit

Available on backorder

Quantity

remove

add

Product Details

Altistart 01 Soft Start (ATS01)

For Asynchronous Motor* lcL Starter Rating: 3A* US Rated Supply Voltage: 110-480V* Motor Power Horsepower: 0.5-1.5 HP* Motor Power kW: 0.55-1.1 kW* Network Number of Phases: Single-phase* Integrated Bypass* Assembly Style: with Heat Sink

Assembly Style	with heat sink
Compatibility Code	ATS01N1
Device Short Name	ATS01
Function Available	integrated bypass
Marking	CE
Network Frequency	47.5…63 Hz
Network Number Of Phases	1 phase
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Product Certifications	CSA# #GOST# #C-Tick# #UL# #CCC# #B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	simple machine
Range Of Product	Altistart 01
Standards	EN/IEC 60947-4-2
Starting Torque	30…80 % of starting torque of motor connected directly on the line supply
Supply Voltage Limits	99-528 V
Tightening Torque	0.8-0.8 N.m
Tightening Torque 1	0.8-0.8 N.m
Type Of Start	start with voltage ramp
