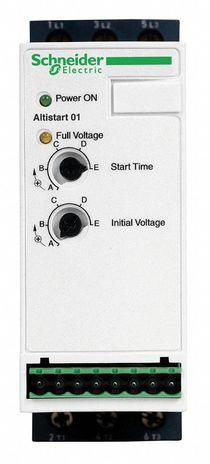

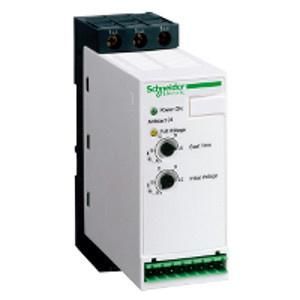

Square D ATS01N112FT

Name: Square D ATS01N112FT
Brand: Square D
SKU: CS3099745
Price: 165.67 USD
Availability: OutOfStock

SKU: CS3099745MPN: ATS01N112FT

soft starter for asynchronous motor, Altistart 01, ATS01, 12A, 110 to 480V, 1.5 to 5.5kW

$165.67

Unit

Available on backorder

Quantity

remove

add

Product Details

Altistart 01 Soft Start (ATS01)

For Asynchronous Motor* lcL Starter Rating: 12A* US Rated Supply Voltage: 110-480V* Motor Power Horsepower: 1.5-7.5 HP* Motor Power kW: 1.5-5.5 kW* Network Number of Phases: Single-phase* Integrated Bypass* Assembly Style: with Heat Sink

Assembly Style	with heat sink
Compatibility Code	ATS01N1
Device Short Name	ATS01
Function Available	integrated bypass
Marking	CE
Network Frequency	47.5…63 Hz
Network Number Of Phases	1 phase
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Product Certifications	B44.1-96/ASME A17.5 for starter wired to the motor delta terminal# #C-Tick# #CCC# #UL# #CSA# #GOST
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	simple machine
Range Of Product	Altistart 01
Standards	EN/IEC 60947-4-2
Starting Torque	30…80 % of starting torque of motor connected directly on the line supply
Supply Voltage Limits	99-528 V
Tightening Torque	1.9-2.5 N.m# #0.5-0.5 N.m
Tightening Torque 1	1.9-2.5 N.m# #0.5-0.5 N.m
Type Of Start	start with voltage ramp
