Square D ATS01N106FT

Name: Square D ATS01N106FT
Brand: Square D
SKU: CS42636
Price: 131.30 USD
Availability: OutOfStock

SKU: CS42636MPN: ATS01N106FTAlternate Part #: SQD-ATS01N106FT

soft starter for asynchronous motor, Altistart 01, ATS01, 6A, 110 to 480V, 0.75 to 3kW

$131.30

Unit

Available on backorder

Quantity

remove

add

Product Details

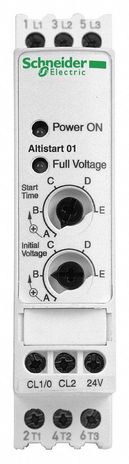

Altistart 01 Soft Start (ATS01)

For Asynchronous Motor* lcL Starter Rating: 6A* US Rated Supply Voltage: 110-480V* Motor Power Horsepower: 0.5-3 HP* Motor Power kW: 0.75-3.0 kW* Network Number of Phases: Single-phase* Integrated Bypass* Assembly Style: with Heat Sink

Assembly Style	with heat sink
Compatibility Code	ATS01N1
Device Short Name	ATS01
Function Available	integrated bypass
Marking	CE
Network Frequency	47.5…63 Hz
Network Number Of Phases	1 phase
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Product Certifications	C-Tick# #CCC# #CSA# #B44.1-96/ASME A17.5 for starter wired to the motor delta terminal# #UL# #GOST
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	simple machine
Range Of Product	Altistart 01
Standards	EN/IEC 60947-4-2
Starting Torque	30…80 % of starting torque of motor connected directly on the line supply
Supply Voltage Limits	99-528 V
Tightening Torque	0.8-0.8 N.m
Tightening Torque 1	0.8-0.8 N.m
Type Of Start	start with voltage ramp
